High-precision vertical inserts achieve good machined surface quality and excellent cutting edge strength.
Excellent machined surface quality: Adoption of polished grade inserts achieves high precision and excellent machined surface quality.
Cutting edge design that combines high edge strength and sharpness: By adopting a vertical insert and optimizing the cutting edge shape, we have achieved both high edge strength and sharpness.
Wide product lineup: In addition to 2 types of insert sizes and 3 types of breakers, we have a wide range of grades available. Can be used for various processing.
Surface machining, corner machining, side machining, groove machining, hole enlarging machining
*The insert is not included in the main body. When selecting a cutter, please check the holder mounting size (DCB).
*Please use JIS B1176 "hexagon socket head bolt" (M12 x 30 to 35 mm) to tighten the main body to the arbor of Φ80 size.

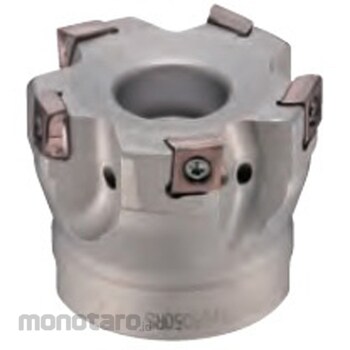

Sumitomo Electric Hard Metal High efficiency & high precision insert vertical corner milling cutter SEC-Sumidual Mill TSX08000R type (shell type standard pitch inch)
#Grup produk P114336219
Spesifikasi
| Blade Diameter (mm) | 80 |
|---|---|
| Bolt Diameter d1 (mm) | 20 |
| Bolt Diameter d2 (mm) | 14 |
| Compatible Insert | LNEX 0804○○PNER- |
| Cutting Angle (°) | 90 |
| Depth (mm) | Installation: 25 |
| Height (mm) | 50 |
| Keyway Depth (mm) | 6 |
| Keyway Width (mm) | 9.5 |
| Mass (kg) | 1 |
| Maximum depth of cut (mm) | 8 |
| Number of Tips | 7 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Right or Left Hand | Right hand |
