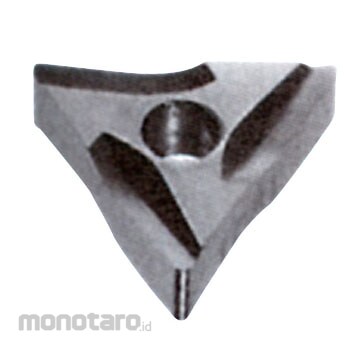

Sumitomo Electric Hard Metal Chip TNGG-GX
#Grup produk P114329796
Spesifikasi
| Accuracy Grade | G class |
|---|---|
| Blade Length l (mm) | 16.5 |
| Chip breaker | GX |
| Clearance Angle (°) | 0 |
| Corner Radius (mm) | 0.4 |
| Cutting Blade Length (mm) | 16.5 |
| Cutting area | Double positive breaker |
| Maker's Former Part No. | TNGX331L |
| Material | H1 |
| Nose Radius r (mm) | 0.4 |
| Right or Left Hand | Left |

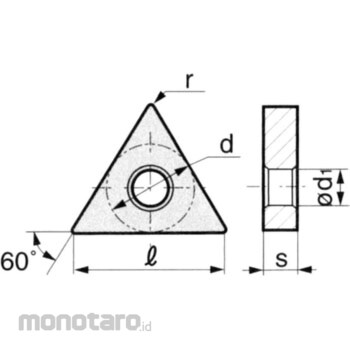

| Shape | Equilateral triangle 60 ° |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Thickness s (mm) | 4.76 |
| Tolerance of Inscribed Circle (mm) | ±0.025 |
| Type | Negative |
| With Or Without Hole | Yes |
