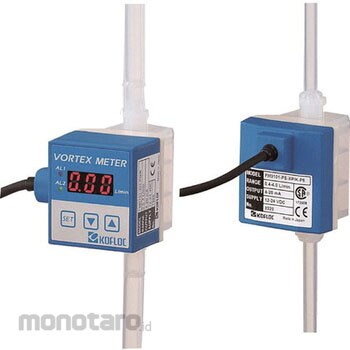

KOFLOC Small Karman vortex flowmeter for liquids (Teflon) FM31 SERIES

This small Karman vortex flowmeter is ideal for measuring and monitoring the flow rate of liquids. All liquid-contacting parts are made of Teflon.
The liquid contact parts are all Teflon and O-ring-less, making it ideal for monitoring the liquid flow rate in semiconductor processes.
*There are many variations in specifications depending on the fluid, flow rate, etc. Please be sure to check the model before making your selection. [Model description] FM31 (flow range) -P (output) -XP/K *Flow range: 01, 02, 03, 04 *Output: S (4-20mA (no display)), D (4-20mA + display) [MODEL FM31 SERIES standard specifications] Connection: FM3101 3/8" tube end FM3102 1/2" tube end FM3103 3/4" tube end FM3104 1" tube end Flow range: FM3101 0.4 to 4L/MIN FM3102 2 to 20L/MIN FM3103 5 to 50L/MIN FM3104 10 to 100L/MIN Measurement fluid: Ultrapure water, chemicals, etc. Measurement accuracy: ±3%FS +1digit Repeatability: Within ±0.5%FS Fluid temperature: 0 to 90°C (Do not freeze or boil) Allowable ambient temperature: 0 to 50°C Allowable ambient humidity: 5 to 90% RH (no condensation) Power supply voltage: 12 to 24 VDC (to be provided by the user) Material: Body - All Teflon (PFA), O-ringless Cover - Polybutylene terephthalate resin (PBT) Cable Conductor - Tin-plated bare soft copper wire Sheath - Heat-resistant and cold-resistant POC (polyvinyl chloride)
