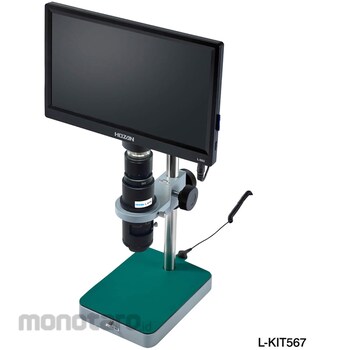

HOZAN (HOZAN TOOL INDUSTRIAL) Microscope (with monitor)
#Grup produk P114193447
Spesifikasi
| Base Dimensions (mm) | 200(W)x255(D) |
|---|---|
| Column Height (mm) | 282 |
| Diopter Adjustment | Left and right independent type, ± 5 Dptr |
| Eyepiece | WF10x(L-546-10) |
| Field of View | 28.5~4.4mmDIA |
| Focus Adjustment | Vertical lens barrel (movable range 50 mm) |
| Interpupillary Distance Adjustment Range (mm) | 54-75, left and right interlocking type |
| Lens Tube Format | Binocular 45 ° tilt lens barrel |
| Mass (kg) | 4.3 |
| Objective Lens | 0.7 to 4.5x (zoom ratio 6.4) |
| Operation Distance (mm) | 84 (with lens filter/ring attached) |
| Overall Magnification | 7~45x |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| adapter-Type | Camera: C-mount (optical magnification 0.35x adapter) Recommended camera sensor size 1/2.8 or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Maximum magnification 195 times. Supports a wide range of magnifications, mainly in the high magnification range.
Feature
Maximum magnification 195 times. Supports a wide range of magnifications, mainly in the high magnification range.Ulasan Produk
