NIDEK Drive Technology Handheld Tachometer EE-1B/EE-2B EE-1B
#Grup produk P114180966
Spesifikasi
| Ambient Humidity to Use | 35 to 85% (non-condensing) |
|---|---|
| Cable Length (m) | About 5 |
| Display | 6 digit red 7 segment LED |
| Function | Phase change: Yes (PHA mode), Jump: Change the emission frequency to 2 times or 1/2 times the current value by button operation, Limit Yes (settable in function mode 5), Integer Yes (settable in function mode 1) , Speed measurement: 27-3300fpm |
| Included Accessories | Grip rubber cover External signal input/output connector (8pin) |
| Input Signal | H level: 2.5-12V L level: 0-0.5V Pulse width 50μs or more *Input impedance 10KΩ or more |
| Lamp | (Flash light source) xenon lamp |
| Mass (kg) | About 1.6 (including rubber cover and power cable) |
| Memory Function | Save the set value when the power is off Save the SELECT number |
| Power Input (V) | AC100~115(50/60Hz) |
| Power for Sensor | DC12V40mA |
| Protection Class | IP63 equivalent |
| Pulse Output | External: 12V voltage signal pulse width about 400μs |
| Resolution | 0.1fpm |
| Timer | Flash: Continuous lighting or stop flashing after a set time (1 to 120 min) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

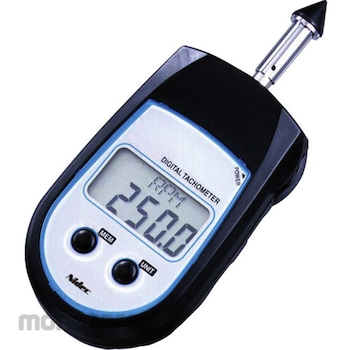

〇 Compact palm-sized design for stable measurement. Easy to carry. 〇 Two types are available: contact type, where the contact is placed directly on the center of rotation of the object being measured, and non-contact type, where measurements can be taken from a distance. 〇 Conversion and display in a wide range of units, including rpm, cm/s, m/min, m, and km. 〇 LCD display with 5 digits and 12mm character height. Displays measurement values as well as units. 〇 Maximum, minimum, final measurement value, and 10 other data points are stored in memory.
Feature
〇 Compact palm-sized design for stable measurement. Easy to carry. 〇 Two types are available: contact type, where the contact is placed directly on the center of rotation of the object being measured, and non-contact type, where measurements can be taken from a distance. 〇 Conversion and display in a wide range of units, including rpm, cm/s, m/min, m, and km. 〇 LCD display with 5 digits and 12mm character height. Displays measurement values as well as units. 〇 Maximum, minimum, final measurement value, and 10 other data points are stored in memory.Ulasan Produk
