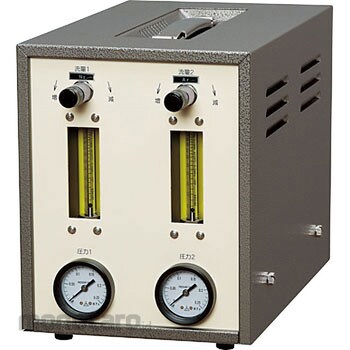

KOFLOC Flowmeter built-in gas mixing device PMG-1A

This gas mixing device has a built-in precision flow control valve and flow meter, and can mix two types of gas.The built-in constant flow unit ensures a stable supply of mixed gas even when load pressure fluctuates.
It is used in a wide range of applications, including general industry, food, and bio-related fields.
*There are multiple variations in specifications. Please be sure to check the model before making your selection. [Model Description] PMG-1A-(Fluid (1))-(Maximum flow rate (1))-(Fluid (2))-(Maximum flow rate (2))-(Operating pressure) The operating pressure is the pressure set by the pressure reducing valve inside the device. The supply pressure of each gas to the device should be 0.05 MPA or more of the operating pressure. If pressure is applied to the piping at the device outlet, etc., make sure that the operating pressure - device outlet pressure is 0.05 MPA or more. [PMG-1A standard specifications] Mixing method: Flow ratio mixing method Measurement range: 10 to 100% of maximum flow rate for each line Accuracy: ±2%FS for each line Main gas-contacting parts: BS, NBR, POM, hard nylon Operating temperature range: 5 to 40°C Operating pressure range: 49 to 588 KPA Pressure resistance: 784 KPA Piping connection: RC1/4 Dimensions: 180W x 300D x 220H *We do not deliver to private homes (detached houses or apartment buildings).
