- This is an AC corona discharge type static eliminator.
- There is no disruption of the ion balance due to dirt on the needle.
- The air direction angle of the front cover can be changed.
- The static elimination range can be switched between straight and wide angle.
- The front cover can be opened and closed with one touch.
- Easy access to the interior makes maintenance easy.

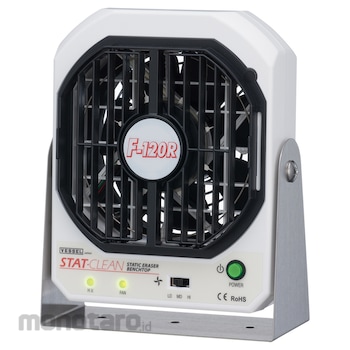

Vessel Ionizing Fan
#Grup produk P114156923
Spesifikasi
| Applied Voltage (kV) | AC10 (p-p) |
|---|---|
| Dimensions (mm) | 198x162x70 (with stand) |
| Ion Balance (V) | ±10 or less (factory default) |
| Material | (Body, Front cover) Flame-retardant ABS resin; (Stand, Electrode Needles) Stainless steel |
| Maximum Airflow (m³/minute) | 3.66 |
| Noise Level (dBa) | 61 (max. and straight airflow) (measured at 1m) |
| Operating Humidity (%RH) | 35 to 65 (no condensation or freezing) |
| Operating Range (mm) | 100 to 900 |
| Operating Temperature (°C) | 5 to 40 |
| Power Supply (V) | AC 100 tp240 (50/60Hz) |
| Static Elimination Method | Piezoelectric high-frequency AC Corona discharge method |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
(Straight louvers)For automatic lines in circuit board manufacturing and integration into LCD film cutting devices.
For attaching to bag making machines and for eliminating static electricity from conveyors in molding machines.
(Wide-angle louvers)
For soldering and film pasting work.
For eliminating static electricity in areas where electronic device components are stored.
