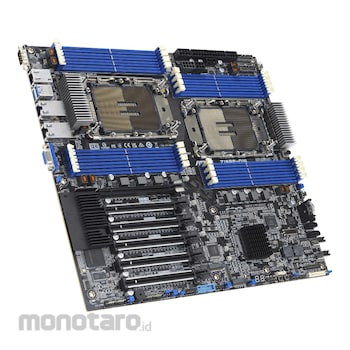

Asus Server Motherboard

- 'E-ATX board ready for dual 5th Gen Intel Xeon Scalable processors, with LGA 4677 socket, and supporting up to 350 W TDP
- A single CPU supports a maximum of three PCIe cards
- 16 x DDR5 4800 RDIMM for up to 4 TB RAM
- Integrated dual M.2 provides PCIe 5.0 x4 bandwidth for faster OS booting
- Dual Intel 10 Gbps Ethernet with teaming support
- Comprehensive IT-infrastructure-management solution with ASUS Control Center (ACC) and ASMB11-iKVM

On Board I/O:
1 x TPM header
3 x PSU Power Connector (1 x 24-pin ATX power connector + 2 x 8-pin ATX 12V power connector)
1 x USB3.2 Gen1 header
1 x USB 2.0 header
8 x Fan Header, 4pin
1 x SMBus
1 x Chassis Intruder
2 x M.2 connector
2 x MCIO connector
2 x SATA connector
2 x Slimline SAS connector
1 x Onboard header for optional management card

Back I/O Ports:
2 x USB3.2 Gen1 ports
1 x Serial Port
1 x VGA Port
2 x 10GbE LAN ports (RJ45, Intel X710-AT2)
1 x Mgmt Port

Environment:
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing)

Accessories:
Gift Box (1-in-1)
1 x I/O shield
2 x SATA cables
2 x Slimline SAS to SATA cables
2 x M.2 screw
Bulk Pack (10-in-1)
1 x I/O shield
2 x M.2 screw
