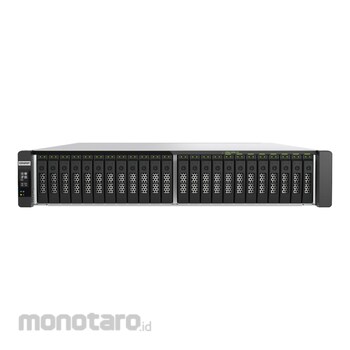

Qnap Rackmount NAS
#Grup produk P114156589
Sebelum PPN:
Rp389.999.900 - Rp719.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (2.5G/1G/100M/10M) |
|---|---|
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Buttons | Power, Reset, OLED |
| CPU Architecture | 64-bit x86 |
| Dimensions (mm) | 88.3x446.2x713.2 |
| Drive Bay | 24 (16 x 2.5-inch U.2 PCIe NVMe + 8 x 2.5-inch U.2 PCIe NVMe/SATA 6Gbps) |
| Drive Compatibility | 2.5-inch bays: 2.5-inch SATA solid state drives (#17-24); 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives |
| Encryption Engine | (AES-NI) |
| Flash Memory | 5GB (Dual boot OS protection) |
| Form Factor | Rackmount |
| Hot-Swappable | Not supported M.2 SSD |
| Jumbo Frame | Yes |
| LED Indicators | SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address |
| M.2 Slot | Slot 1: M.2 2280 NVMe PCIe Gen 3 x4 or SATA 6Gb/s; Slot 2: M.2 2280 NVMe PCIe Gen 3 x2 or SATA 6Gb/s |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10000 |
| Maximum Memory | 1 TB (32 x 32 GB) |
| Memory Slot | 32 x RDIMM DDR4 ECC (16 x slots per socket) |
| Net Weight (kg) | 22.77 |
| Operating Temperature | 0 - 35°C (32°F - 95°F) |
| Power Consumption: Operating Mode, Typical (W) | 467.59 (Tested with drives fully populated) |
| Power Supply Unit | 1200W PSU(x2), 100-240Vac; Max Wattage: 1200W@200-240Vac, 1000W@100-127Vac |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| SR-IOV Support | Yes |
| SSD Cache Acceleration Support | Yes |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| System Warning | Buzzer |
| USB 3.2 Gen 1 Port | 4 |
| Wake on LAN (WOL) | Yes (Only the 2.5GbE port) |
| fan | 6 x 60mm, 12VDC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
PCIe Slot 4Slot 1: PCIe Gen4 x16 or Gen4 x8*
Slot 2: PCIe Gen4 x8
Slot 3: PCIe Gen4 x16 or Gen4 x8*
Slot 4: PCIe Gen4 x8
*Slot 4 is preinstalled with a 25GbE network adapter.
**Slot 1 provides the width of PCIe Gen4 x16 when Slot 2 is not in use, and provides the width of PCIe Gen4 x8 when Slot 2 is in use.
**Slot 3 provides the width of PCIe Gen4 x16 when Slot 4 is not in use, and provides the width of PCIe Gen4 x8 when Slot 4 is in use.
Card dimensions for PCIe slot 1：225 x 68.9 x 39.08 mm / 8.86 x 2.71 x 1.54 inches.
Card dimensions for PCIe slot 2：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches.
Card dimensions for PCIe slot 3：225 x 68.9 x 39.08 mm / 8.86 x 2.71 x 1.54 inches.
Card dimensions for PCIe slot 4：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
