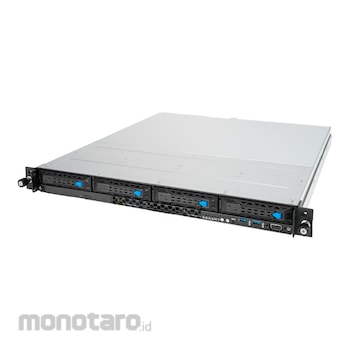

Asus Rack Server

Ideal for remote office/branch office (ROBO) use and everyday business environments
Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP
Four 3.5” or 2.5” hot-swap drives on front panel and one M.2 to enable extensive storage
Up to two PCIe® 4.0 slots and one PCIe® 3.0 proprietary slot to drive higher bandwidth
High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
Dual Intel I210AT Gigabit Ethernet with teaming support
ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

Expansion Slots:
Total PCI/PCI-X/PCI-E/PIKE Slots: 3
1 x PCI-E x 16 (Gen4 x16 Link, switch to x8 link when slot B occupied), FH/HL
1 x PCI-E x 8 (Gen4 x8 Link), HH/HL*
1 x PCI-E x 4 (Gen3 x4 Link), Proprietary R/A slot
(optional for Intel X710 10G LAN card)
* not available when supporting NVME SSD

Storage:
Storage Controller :
Intel® C252 Chipset
6 x SATA3 6Gb/s ports
Intel®VROC (For Linux/Windows)
(Support Software RAID 0/1/5/10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

HDD Bays:
4 x 3.5” Hot-Swap HDD Bays
-up to (2*SATA/SAS/NVMe + 2*SATA/SAS)
*SAS support only from optional SAS HBA/RAID card
*NVMe support only from optional NVMe upgrade kit

Rear I/O Ports:
2 x USB 3.2 Gen 2 ports
1 x VGA port *
1 x HDMI port from CPU
1 x COM port
2 x RJ-45 ports
1 x RJ-45 ports (One for ASMB10-iKVM)(Optional)
*Must support by ASMB10
Switch/LED

Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch
Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED

Environment:
Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
