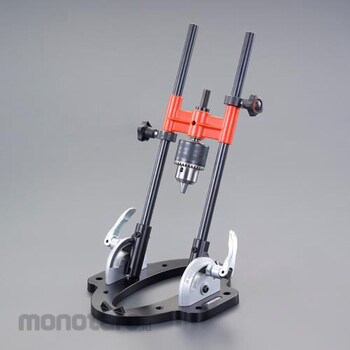

With 13mm keyless chuck (6.35mm hexagonal shaft) The tilt angle can be adjusted from 30 ° to 90 °. The body is made of lightweight and durable aluminum die-cast and can be drilled with accurate vertical holes. The marking line on the base makes it easy to center. The V-shaped block is removable. If you install it, you can make a hole in the center of the pipe or round bar, and if you remove it, you can make a hole in the center of the square lumber. The depth of the hole can be freely determined by adjusting the position of the stopper. The knob screw has a large diameter that is easy to tighten.
* Before use, be sure to tighten the chuck and each screw. Do not install anything other than an electric drill. Be sure to wear dust-proof glasses while working to protect your eyes from flying objects. If you feel any abnormality during use, stop immediately and inspect.
ESCO Drill guide
#Grup produk P114120256
Spesifikasi
| AS ONE Part Number | 65-2221-23 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification* Maximum stroke: 200mm * Base size: 71 x 181mm (with V groove) * Overall length: 350mm * Weight: 2.5kg * Material: Body: Aluminum die-cast * Drilling range: Base hole diameter 71: mm * Shank: 10mm Round three sides Axle * Chuck: 13mm drill chuck
