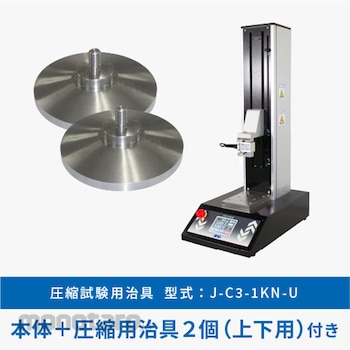

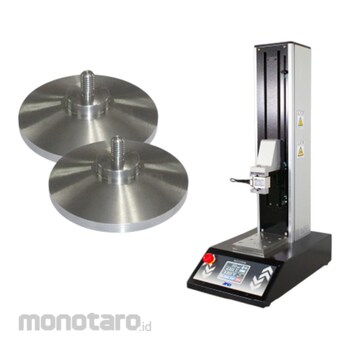

See the strength! This high-performance, low-test-force (test-force display resolution: 0.001N) desktop tension/compression testing machine's compression jig set includes two compression pressure plates (J-C3-1KN-U) for compression testing. The color touch panel provides excellent visibility and easy operation. A high-precision load cell is included, so you can start using it immediately after powering it on. The test speed can be easily set digitally. A displacement display is included as standard. PC import software is included as standard. Jigs (attachments) previously used with force gauges and push-pull gauges can also be used. (For M6 threaded models, use the M6 male thread adapter.)
Connect to the mini printer AD-8126 (sold separately) to print out maximum load and displacement. Space-saving design for tabletop use. Force measuring instrument that can replace force gauges and push-pull gauges. Supports various material tests.
For various material tests
*Not waterproof. *Coexistence with the 64-bit version of Office 2021 is currently not supported.
A&D Tabletop Tension/Compression Testing Machine [Force Tester] MCT Series Jig Set Model
#Grup produk P113890039
Spesifikasi
| Capacity | 500N |
|---|---|
| Compatible Software | MSAT-Lite |
| Displacement (mm) | 000.0 (minimum 0.1) |
| Display Resolution | 0.01N (Displays 0.1N when exceeding 100N) (When using 500N load cell)/0.001N (Displays 0.01N when exceeding 10N) (When using 50N load cell) |
| Effective Stroke (mm) | 285 (when using standard parallel tightening jaws) |
| Included Accessories | Instruction manual, 500N load cell, 50N load cell, PC software (CD-ROM), USB cable, compression pressure plate (J-C3-1KN-U) x 2 |
| Jig Used | Compression pressure receiving plate for compression test (DIA60mm) top and bottom |
| Measuring Accuracy | 500N to 50N: ±0.2% FS, 50N to 5N: ±2% of indicated value, 5N or less: within ±0.1N (when using 500N load cell) / 50N to 5N: ±0.2% FS, 5N to 0.5N: indicated value ±2% of 0.5N or less: Within ±0.01N (when using 50N load cell) |
| Power Supply | AC90~240V 1DIA 50/60Hz |
| Stroke (mm) | 370 (Crosshead) |
| Supported OS | Windows XP, Vista Business, 7Pro, 8/8.1Pro, 10Pro, 11 Pro, USB: Ver 2.0 or higher |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
