Anyone can easily measure vibration. It uses a 1.3g compact and lightweight sensor. For vibration measurement of small objects.
For measuring the vibration of a blower used for drying after painting an automobile. For vibration measurement of the installation location of a large computer. To check the working condition of the solenoid valve. For inspection of machine tool defects. For maintenance of general-purpose engines. For maintenance of chassis dynamometer for automobile testing. For checking bearing abnormalities of blowers in garbage incinerators. To check the wear of bearings of automatic grinders that make watch parts. For measuring the amplitude and acceleration of a vibration tester. For measuring the resonance point of an instrument to which engine vibration is transmitted. To find out how the automatic machine for packaging medicines works. For regular checks of pumps and blowers in oil plants. To check the growl of the transformer. For quantifying malfunctions of mobile phone vibrators. For measuring spindle vibration. For maintenance of cooling tower fans.
*Products with proofreading documents cannot be canceled after ordering. *Applicable documents are attached only to products that include (calibration certificate) in the product number.

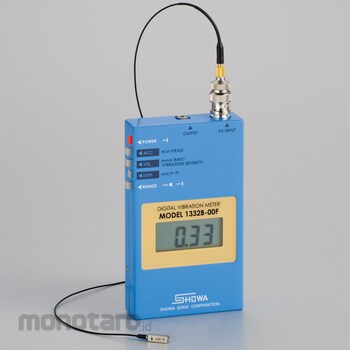

Showa Sokki Portable vibration meter Digivibro [lightweight sensor type]
#Grup produk P113888496
Spesifikasi
| Battery Life (continuous use) | 30 hours or more |
|---|---|
| Detector | MODEL-2302B |
| Dimensions, Width W x Height H x Depth D (mm) | 75x130x24 |
| Frequency Range (Hz) | Acceleration: 5 to 5000 (± 1 dB), Velocity: 10 to 1000 (± 3db), Displacement: 10 to 1000 (± 3 dB) |
| Mass of Main Unit (g) | About 230 |
| Measuring Accuracy | (80Hz 23 ± 5 °C 1 / 2FS), Acceleration: ± 3% ± 1 digit, Velocity: ± 5% ± 1 digit, Displacement: ± 5% ± 1 digit |
| Measuring Range | Acceleration: Hi (Peak) 0.1-199.9m / s <sup>2</sup> (Peak), Lo (Peak) 0.01-19.99m / s <sup>2</sup> (Peak), Velocity: Hi (RMS) 0.1-199.9mm / s, Lo (RMS) 00.1 ~ 19.99mm / s, displacement: Hi (PP) 0.01 ~ 19.99mm, Lo (PP) 0.001 ~ 1.999mm |
| Output | AC ± 2V (full scale) |
| Power Supply | 2 AA alkaline batteries (LR6) |
| Set Contents | Main unit (MODEL-1332B-00F) x 1, Piezoelectric accelerometer (MODEL-2302B) x 1 (cable direct), BNC conversion connector (BNCP-C-25J) x 1, AA alkaline battery (LR6) x 2, Carrying case x 1, Instruction manual x 1, Inspection report x 1 |
| Temperature Range (°C) | Detector: -20 to +110, Amplifier: -10 to +50 |
