A&D Multi-interface (for relay output)
#Grup produk P113886197
Spesifikasi
| Included Accessories | Instruction manual, D-Sub9P cable (1m, for measuring instrument connection) |
|---|---|
| Interface | RS-232C (D-Sub9P male) for meter connection, terminal block for relay output (4pin), RS-232C (D-Sub9P male), USB TypeA |
| Outer Dimensions | 200(W)x60(D)x40(H)mm |
| Power Supply | Power is supplied from the meter using the included D-Sub9P cable. * If you do not use the included cable, you will need an AC adapter (AX-TB294), which is sold separately. |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable Model | GC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

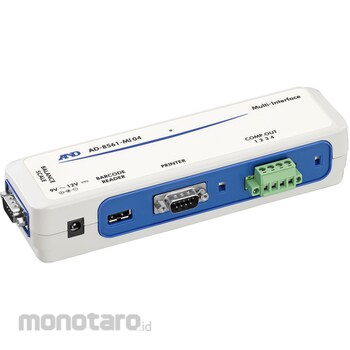

It connects to the RS-232C output of the counting scale GC series, and in addition to the D-Sub9P for multi-interface weighing instrument connection that enables connection with a comparator light (buzzer), PC, printer, barcode reader, and keyboard, the interface is ``Relay output terminal block (4pin)'', ``D-Sub9P'', and ``USB TypeA'' are available, and can be connected to various external devices. D-Sub9P can be connected to a printer or PC to send and receive data USB TypeA can be connected to a barcode reader or keyboard to send commands Optional terminal block cover AD-8561-11 is also available
