It connects to the RS-232C output of the counting scale GC series and enables connection with a large weighing platform, PC, printer, barcode reader and keyboard. Terminal block for scale (7pin)”, “D-Sub9P”, and “USB TypeA” are available, and can be connected to various external devices Weighing data from the weighing platform connected to the terminal block for external scale (7pin) to the weighing scale D-Sub9P can be connected to a printer or PC to send and receive data USB TypeA can be connected to a barcode reader or keyboard to send commands Terminal block cover AD-8561-11 is included as standard
*Additional adjustment costs apply when connecting to a weighing platform.

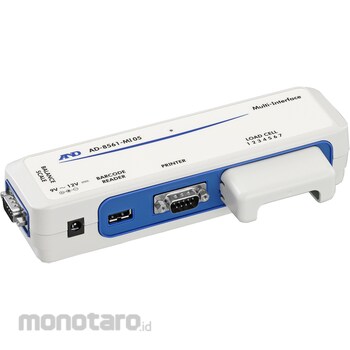

A&D Multi-interface (for external scale connection)
#Grup produk P113886151
Spesifikasi
| Included Accessories | Instruction manual, D-Sub9P cable (1m, for measuring instrument connection), terminal block cover |
|---|---|
| Interface | RS-232C (D-Sub9P male) for measuring instrument connection, terminal block (7pin) for external scale connection, RS-232C (D-Sub9P male), USB TypeA |
| Outer Dimensions | 200(W)x60(D)x40(H)mm |
| Power Supply | Power is supplied from the meter using the included D-Sub9P cable. * If you do not use the included cable, you will need an AC adapter (AX-TB294), which is sold separately. |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable Model | GC |
