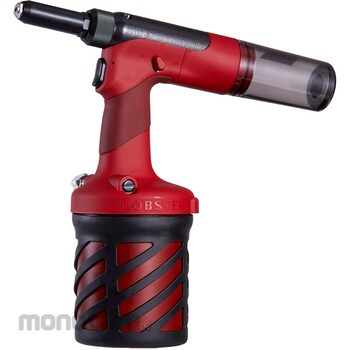

LOBSTER (Lobster/Shrimp Brand/Lobtex) Air Riveter
#Grup produk P113841149
Spesifikasi
| Air Volume (L) | (Usage) Air consumption per minute: 105/min or less (air pressure 0.6MPa when suctioning) |
|---|---|
| Included Accessories | Nosepiece (for DIA4.8, DIA6.4), guide pipe (for DIA4.8, DIA6.4) |
| Noise Level (dB) | Equivalent sound pressure level LAeq 80 or less |
| Output | Tool pulling force 18.5kN (air pressure 0.6MPa suction) |
| Overall Length (mm) | 331 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Stroke (mm) | 25 |
| Suitable Jaw | CJL (Super Hard Large) |
| Trusco Part No. | 668-8577 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description
This air riveter combines strength and gentleness.
Also compatible with high-strength rivets and S bolts (optional)
This has dramatically improved maintainability, which was a problem in the field.
Reduces the frequency of hydraulic oil replenishment (stroke reduction is less than 0.2 mm after 1 million stroke tests).
The frame head can be removed without tools.
Maintenance around the jaws and replacement of the nosepiece are now easier.
Oil leakage has been drastically reduced due to improved sealing of the hydraulic cylinder.
It features a two-tone molded resin grip that makes it easy to hold.
Fastening blind rivets
Also compatible with high-strength rivets and S bolts (optional)
This has dramatically improved maintainability, which was a problem in the field.
Reduces the frequency of hydraulic oil replenishment (stroke reduction is less than 0.2 mm after 1 million stroke tests).
The frame head can be removed without tools.
Maintenance around the jaws and replacement of the nosepiece are now easier.
Oil leakage has been drastically reduced due to improved sealing of the hydraulic cylinder.
It features a two-tone molded resin grip that makes it easy to hold.
Fastening blind rivets
Feature
This air riveter combines strength and gentleness.Also compatible with high-strength rivets and S bolts (optional)
This has dramatically improved maintainability, which was a problem in the field.
Reduces the frequency of hydraulic oil replenishment (stroke reduction is less than 0.2 mm after 1 million stroke tests).
The frame head can be removed without tools.
Maintenance around the jaws and replacement of the nosepiece are now easier.
Oil leakage has been drastically reduced due to improved sealing of the hydraulic cylinder.
It features a two-tone molded resin grip that makes it easy to hold.
Specification : Vacuum ON/OFF switch included
Use
Fastening blind rivetsUlasan Produk
