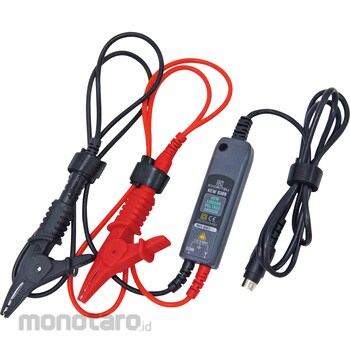

KYORITSU ELECTRICAL INSTRUMENTS Voltage sensor (for 5020)
#Grup produk P113833654
Spesifikasi
| Accuracy | ±1.0%rdg±0.1mV |
|---|---|
| Applicable Standard | IEC/EN 61010-1: 2001 Measurement CAT.III 600V Contamination degree 2, IEC/EN 61010-031: 2002, EN 61326: 2001 (EMC standard) |
| Dimensions, Width W x Height H x Depth D (mm) | 26 x 87 x 17 (excluding protrusions) |
| Environmental Conditions to Use | Indoors up to an altitude of 2000m |
| Frequency Range (Hz) | 50/60 |
| Height (mm) | 87 |
| Included Accessories | Instruction manual |
| Input Method | Differential input (floating voltage can be measured) |
| Length (mm) | 17 |
| Mass (g) | About 135 |
| Maximum Input Voltage | AC600Vrms,848.4Vpeak |
| Measuring Range | 6~600V |
| Operating Temperature/Humidity Range | -10 to 50 ° C, relative humidity 85% or less (no condensation) |
| Output Impedance (ohm) | About 180 |
| Output Terminal | MINI DIN 6PIN |
| Output Voltage | AC0-60mV (output/input: 0.1mV/V) |
| Overall Length (m) | About 2 |
| Width (mm) | 26 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Floating voltage (phase-to-phase voltage that is not grounded) can be measured
