It is possible to measure the thickness of various materials, from metals to non-metals.
The thickness is calculated by measuring the time it takes for the ultrasonic waves output from the transducer to enter the object, reflect off the opposite surface, and return (propagation time).
It can easily measure the thickness of finished metal processed products, corrosion inspection of pipes and steel plates, and thicknesses in areas that are difficult to measure with calipers or micrometers.
Equipped with a backlit LCD for convenient use in dark places.
Equipped with auto power off function to reduce battery consumption
*Only products that include a "calibration certificate" will be calibrated at a calibration point established by an external calibration company based on the ISO quality management system, and the product will be shipped after the document is issued.

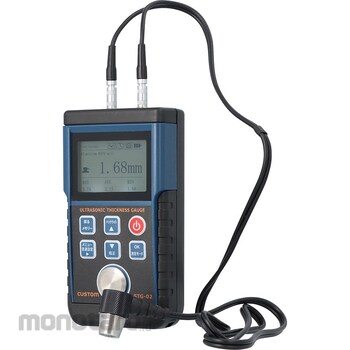

Custom Ultrasonic thickness gauge
#Grup produk P113833016
Spesifikasi
| Accuracy | ±(1% rdg + 0.1) mm |
|---|---|
| Dimensions (mm) | 72x37x135 |
| Measurement Method | Ultrasonic pulse reflection type |
| Measuring Range (mm) | 1.0 to 350 (steel) |
| Part Number | STG-02 (with English general calibration certificate) |
| Power Supply | 3 x AA batteries |
| Probe | Integrated cable, total length approximately 950 mm, operating frequency 5 MHz, outer diameter (contact surface diameter) DIA 18 mm (DIA10 mm), approximately 46 g |
| Resolution (mm) | 0.01 (1 to 99, 0.1 (100 or more) |
| Sampling | Approximately 2 times/second |
| Setting Range | Sound speed: 1000 to 9999(m/s) |
