This table is ideal for fixing multiple attachments with different mounting intervals.
The T-nut moves left and right, making it easy to center when attaching a vise or attachment.
The T-nuts with attached attachments can be inserted from either the left or right side of the table. This is convenient when using multiple interchangeable attachments.

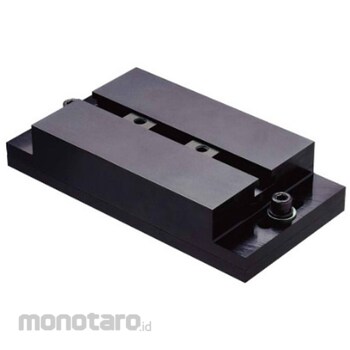

The TS-5000N is a T-slot table for fixing jigs that can handle a maximum load of 5000N. It is ideal for fixing multiple attachments with different mounting intervals.
IMADA T-slot table for fixing jigs
#Grup produk P113832734
Spesifikasi
| Allowable Load (N) | 5000N (when using two T-nuts and attaching a vise, etc.), 2500N (when fixing a jig, etc. with one T-nut) |
|---|---|
| Included Accessories | T-nuts (2 pieces), stand mounting bolts (2 pieces) |
| Mass (g) | Approximately 5300, |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*T-nut spacing: Maximum 125mm*T-nut hole diameter: M8*X-travel: ±60mm (with one T-nut), ±30mm (with GT-2000N vise jig attached)*Y-travel: ±15mm*Compatible test stands: [Vertical electric type] MX series, MX2 series, EMX series [Vertical manual type] SVL-1000N, SVH-1000N, HV series
