Accurate insulation resistance measurement is possible even during daytime power generation conditions Rainproof structure allows measurement even in bad weather Memory function that can store up to 1000 measurement results Luminous button and backlight to support field work at night Progress from the start of measurement Time display function Date and time can be set (simultaneously saved in recorded data) Compact and lightweight design makes it convenient for long-term work and portability Measuring probe equipped as standard with a remote switch that can be operated at hand AC voltage (true effective value) Automatically determines and measures DC voltage and DC voltage Comes with auto discharge function Saved measurement results can be transferred to a PC via USB connection
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

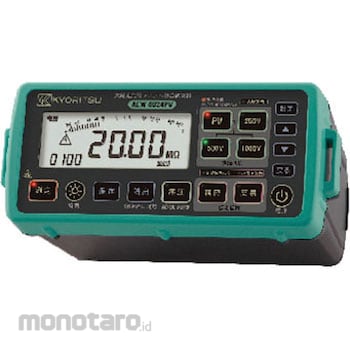

KYORITSU ELECTRICAL INSTRUMENTS Solar power generation system comprehensive tester
#Grup produk P113831054
Sebelum PPN:
Rp11.999.900 - Rp14.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Voltage (V) | 5~600(45~65Hz) |
|---|---|
| Applicable Standard | IEC 61010-1 CAT III 600V, CAT IV 300V Pollution Degree 2, IEC 61010-2-030, IEC 61010-031, IEC 60529 (IP54), IEC 61557-1, -2, -5, -10, IEC 61326-1, 2-2, JIS C1302 compliant (insulation resistance meter), JEM-TR228BU15001 |
| Circuit Voltage Used | (Open) 1.2 times or less of the rated measured voltage value |
| DC Voltage (V) | ±5~1000 |
| Dimensions, Width W x Height H x Depth D (mm) | 184x84x133 |
| Length (mm) | 133 |
| Mass (g) | Approximately 900 (including batteries) |
| Measurement Range | (Earth resistance meter) 20/200/2000Ω: Simple measurement, precision measurement |
| Measurement Voltage (V) | (PV insulation resistance measurement) 500/1000, (insulation resistance measurement) 250/500/1000 |
| Power Supply | AA alkaline battery LR6 x 6 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Short Circuit Current (mA) | DC1.5 or less |
| Suitable Battery | AA alkaline battery LR6 x 6 |
