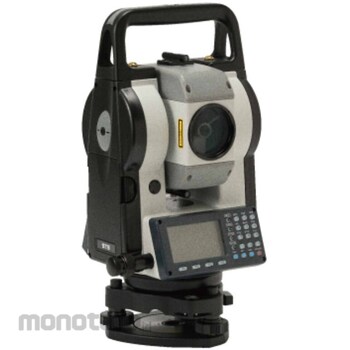

STS Reflectorless Total Station
#Grup produk P113829794
Spesifikasi
| Accuracy | [Angle measurement section] 5\"; [Distance measurement unit] Reflective prism 4m or more: ±(2+2ppmxD)mm, Reflective prism 1.6m to less than 4m: ±(3+2ppmxD)mm, Reflective sheet: ±(3+2ppmxD)mm, Non-prism: ±(5+3ppmxD)mm; [Laser plummet] 1.5mm/1.5m |
|---|---|
| Automatic Power Off | Yes (choice of OFF or 20 minutes) |
| Battery | Two rechargeable Li-ion batteries included as standard |
| Bubble Tube | Rod: 30\"/2mm |
| Continuous Operating Time | About 12 hours |
| Display | LCD dot matrix (with backlight) |
| Dust/Water Protection | IP54 equivalent |
| External Memory | USB 2G~32G |
| Field of View | 1° 30' |
| Image | Normal image |
| Interface | RS232C/USB TypeA |
| Internal Memory | Approximately 50,000 points |
| Laser Power | Distance measurement unit: 5mW or less, Class 3R (JIS C6802:2018), Laser plummet: 1mW or less, Class 2 (JIS C6802:2018) |
| Light Source | 635nm red semiconductor laser |
| Magnification | 30 times |
| Measuring Range (m) | 1-element prism: Approx. 1.6m to 5000m, mini prism: Approx. 1.6m to 2500m, reflective sheet: Approx. 1.6m to 800m, non-prism: Approx. 0.5m to 400m |
| Minimum Focusing Distance | 1.6m |
| Minimum Reading | Distance measurement unit: 0.001m, Angle measurement unit: 1\"/5\"/10\" selectable |
| Operating Temperature Range (°C) | -20~+50 |
| Overall Length (mm) | 155 |
| Reading | [Scale] Horizontal angle: both sides Altitude angle: both sides |
| Recharging Time | About 7 hours |
| Resolving Power | 3.5\" |
| Set Contents | Main unit, dedicated hard case, two shoulder straps, tools, hood, RS232C to USB connection cord, two BTTS205L rechargeable batteries, SCL-85AS charger (with adapter), USB memory (instruction manual/software) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A non-prism total station that offers outstanding cost performance
Feature
Specification[Angle measurement mode] Horizontal angle: clockwise/counterclockwise (selectable), Altitude angle: zenith 0°/horizontal 0°±90° (selectable), gradient % display
