With auto hold function. Hard case integrated tester with auto power off function.
With continuity check and diode check functions.
*Products with part numbers that include (with calibration certificate and traceability system chart provided by a calibration company) have their measuring instruments calibrated at the time of shipment, and the relevant calibration-related documents are included. *When placing your order, please specify the address to be written on the document.
*Products whose part number includes (English version of calibration certificate included) will be calibrated at a calibration point based on the standards of an external calibration company based on the ISO quality management system, and will be shipped after the document is issued.

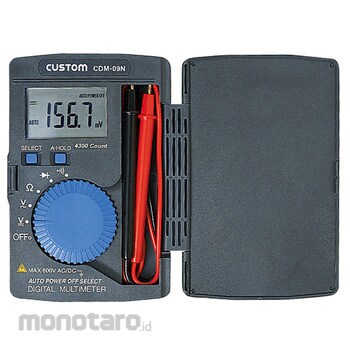

Custom Pocket Tester
#Grup produk P113828412
Spesifikasi
| AC Voltage (V) | Range 4, 40, 400, 600 |
|---|---|
| Accuracy | DCV: ±(1.2 %rdg + 2 dgt)/400mV .Other than ±(1.2 %rdg + 1 dgt)/400mV; ACV: ±(2.0%rdg+5dgt); Ω: ±(1.2%rdg+2dgt)/400Ω, 4KΩ, 40KΩ, 400KΩ . ±(2.0%rdg+3dgt)/4MΩ . ±(5.0%rdg+3dgt)/40MΩ |
| Applicable Standard | IEC 61010 600V CAT.II |
| Calibration | Possible |
| Calibration Certificate | English proofreading certificate included |
| DC Voltage (V) | 400m,4,40,400,600 |
| Dimensions, Width W x Height H x Depth D (mm) | 76x117x18 |
| Display | 3.5 digit LCD display, up to 4300 counts |
| Display Items | Over display: \"OL\" display Polarity display: Automatic switching, only \"-\" is displayed |
| Function | Auto hold, auto power off |
| Height (mm) | 117 |
| Included Accessories | Battery (LR-44, 1.5V) x 2 ; instruction manual |
| Length (mm) | 18 |
| Mass (g) | About 110 |
| Measuring Item | AC voltage, DC voltage, resistance, continuity, diode check |
| Operating Principle | Double integration method |
| Operating Temperature/Humidity Range | 0 to +50 °C, 80% RH or less (no condensation) |
| Option | Case: CC-02 |
| Part Number | CDM-09N (with English general calibration certificate) |
| Power Consumption (mW) | About 4.5 |
| Power Supply | 2 LR-44 (1.5V) button batteries |
| Range | DCV:400mV,4V,40V,400V,600V; ACV:4V,40V,400V,600V; Ω:400Ω,4KΩ,40KΩ,400KΩ,4MΩ,40MΩ |
| Range Switching | Full auto range |
| Resistance (Ω) | 400,4k,40k,400k,4M,40M |
| Resolution | DCV:0.1mV,0.001V,0.01V,0.1V,1V; ACV:0.001V,0.01V,0.1V,1V; Ω:0.1Ω,0.001KΩ,0.01KΩ,0.1KΩ,0.001MΩ,0.01MΩ |
| Sampling | 2 times/sec (numerical value) |
| Storage Temperature/Humidity Range | -10 to +60 °C, 70% RH or less (no condensation) |
| Wave Detection | Average method |
| Width (mm) | About 76 |
