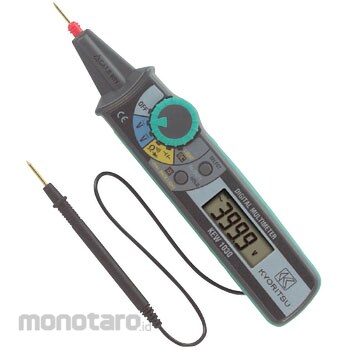

A high-performance pen-type multimeter that pursues safety, security, and ease of use. Just fit with overmolding. With LCD backlight. Equipped with a long-life LED penlight that is effective in dark places. The measurement cord is neatly stored on the back of the main unit. Auto power off to reduce battery consumption. Comes with a cover to prevent unexpected accidents. Safety standard CAT.III 600V compatible
*Shocks such as drops or storage at high temperatures may cause malfunction and are not covered by the warranty. [Products with calibration certificates cannot be canceled after ordering] *Products with calibration certificates and traceability diagrams can only be ordered online. It becomes.
*Applicable documents are included only with products whose part number includes (JCSS calibration book included), (general calibration book/traceability system diagram included), or (calibration book/traceability system diagram included).
KYORITSU ELECTRICAL INSTRUMENTS Pen type tester
#Grup produk P113827839
Spesifikasi
| AC Voltage (V) | 4/40/400/600 (4 ranges, auto) (Input impedance: 10MΩ) ±1.3%rdg±5dgt (4/40V) (50/60Hz) ±1.6%rdg±5dgt (400/600V) (50/60Hz) |
|---|---|
| Applicable Standard | IEC 61010-1 CAT III 600V Pollution Degree 2, IEC 61326 (EMC) |
| Calibration Certificate | General calibration |
| Capacitance (F) | 50/500n/5/50/100μ (5 ranges, auto), ±3.5%rdg±10dgt (50nF), 3.5%rdg±5dgt (500n to 50μF), ±4.5%rdg±5dgt (100μF) |
| DC Voltage (V) | 400mV/4/40/400/600 (5 ranges, auto) (Input impedance: 10MΩ) ±0.8%rdg±5dgt (400mV/4/40/400V) ±1rdg±5dgt (600V) |
| DUTY | 0.1 to 99.9% (pulse width/pulse period) ±2.5%rdg±5dgt |
| Data Hold | Operates with the data hold button ON |
| Dimensions, Width W x Height H x Depth D (mm) | 39x190x31 |
| Diode Test | Open circuit voltage: Approximately 1.5V (0.4mA measurement current) |
| Frequency (Hz) | 5/50/500/5k/50k/200k ±0.1% rdg±5dgt (Input sensitivity voltage: 1.5V [up to 50kHz]/10V [>200kHz] or more) |
| Included Accessories | 9130 (carrying case), 2 x LR44 button batteries, instruction manual |
| Length (mm) | 31 |
| Mass (g) | Approximately 100 (including batteries) |
| Part Number | KEW1030 (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | Button battery LR-44 (1.5V) x 2 (auto power off about 30 minutes) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 400/4/40/400k/4/40M (6 ranges, auto) ±1%rdg±5dgt (400Ω to 4MΩ) ±2.5%rdg±5dgt (40MΩ) |
| Suitable Battery | Two LR44 (1.5V) button batteries (auto power off after approximately 30 minutes) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationLow battery warning: Warning appears when battery voltage drops below 2.4V
