Ideal for tensile testing of a wide range of samples, including lead wires of electronic components, film, paper, rubber, etc.
The clothespin-like mechanism allows the tip to spread widely, making it easy to attach and remove samples.
The hook type makes it easy to attach to a force gauge.
The pantograph automatically increases the clamping force when pulled, making measurements easy and accurate.
The PGC-0505/0510/2530 are pantograph chucks that can handle a maximum load of 2500N. The clothespin-like mechanism allows the tip to spread widely, making it easy to attach and detach samples. They are ideal for tensile testing a wide range of samples, including lead wires of electronic components, film, paper, and rubber.

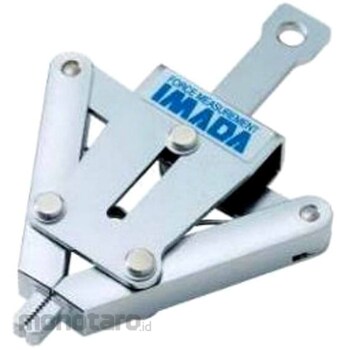

IMADA Pantograph chuck PGC series
#Grup produk P113827778
Spesifikasi
| Jaw Opening Width (mm) | Up to 15 |
|---|---|
| Mass of Main Unit (g) | Approximately 750 |
| Maximum Working Load (N) | 2500 |
| Mounting Screw Diameter | M10 |
| Thickness (mm) | Measurable samples: up to 10 |
| Tip Width (mm) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ulasan Produk
Tidak ada ulasan
