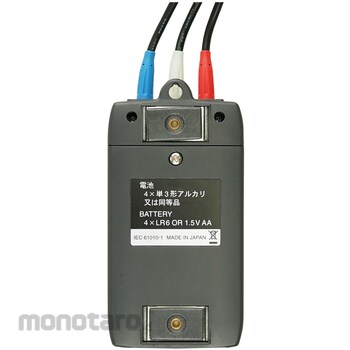

Safely measure from above the wire sheathing Compatible with wires from 2mm 2 to 325mm 2 (IV) Comes with a magnet that can be installed inside the switchboard
Ideal for checking phase detection, open phase, and ground phase (delta connection)
*Shocks such as dropping or storage at high temperatures may cause malfunction and are not covered by the warranty.
[Products with proofreading documents cannot be canceled after ordering] *Products with proofreading documents and traceability system diagrams can only be ordered online.
*Applicable documents are included only with products whose part number includes (JCSS calibration book included), (general calibration book/traceability system diagram included), or (calibration book/traceability system diagram included).

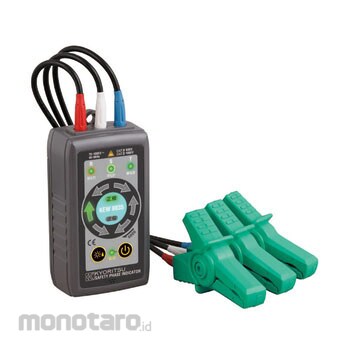

KYORITSU ELECTRICAL INSTRUMENTS Non-contact phase detector
#Grup produk P113827510
Spesifikasi
| Applicable Standard | IEC 61010-1 (JIS C 1010-1) CAT.IV 600V, CAT.III 1000V Pollution degree 2 IEC 61326, IEC 61557-1, 7 |
|---|---|
| Battery Voltage Display | (Warning) When the battery is exhausted/Power LED point reduction |
| Cable Length (m) | Approximately 0.7 (Measurement/R: Red S: White T: Blue) |
| Calibration Certificate | General calibration |
| Continuous Operating Time (hour) | Approx. 100 (Auto power off approx. 10 minutes) |
| Dimensions, Width W x Height H x Depth D (mm) | 60x112x36 |
| Display Function | LED light up function |
| Frequency Measuring Range (Hz) | 45~66 |
| Included Accessories | 9096 (carrying case), AA alkaline batteries (LR6) x 4, instruction manual |
| Length (mm) | 36 |
| Mass (g) | About 380 |
| Measurement Functions | Phase detection (normal phase, reverse phase), presence/absence of open phase, and grounding phase can be checked. |
| Measurement Principle | Electrostatic induction method |
| Operating Temperature/Humidity Range | -10 to 50 ° C, 80% (no condensation) |
| Part Number | KEW8035 (with test report, calibration certificate, and traceability system diagram) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Storage Temperature/Humidity Range | -20-60 °C, 80% (without condensation) |
| Suitable Battery | AA alkaline batteries (LR6) x 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationPositive phase: The green LED for the rotation arrow flashes sequentially (clockwise), the green LED for the positive phase character lights up, and the buzzer sounds intermittently. Negative phase: The red LED for the rotation arrow flashes sequentially (counterclockwise), the red LED for the negative phase character lights up, and the buzzer sounds continuously.
