A single unit packed with all the measurement functions you need for completion inspections and maintenance!
Use with an EVSE adapter to smartly test standard EV chargers Equipped with a wide range of measurement functions necessary for maintenance and repair Insulation resistance measurement/ground resistance measurement/voltage and frequency/resistance and continuity/earth leakage breaker test/phase detection/SPD operating voltage confirmation/live wire E check/hand-cranked motor phase detection Auto memory function
Link with dedicated app via Bluetooth connection
Equipped with EV charger function that enables testing required for EVSE
*If the delivery destination is a private residence (detached house/complex housing), the store name is required. Please note that delivery may not be possible if there is no store name.

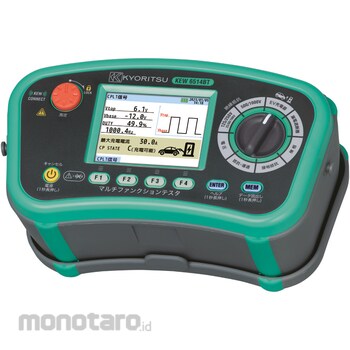

KYORITSU ELECTRICAL INSTRUMENTS Multifunction Tester
#Grup produk P113827273
Sebelum PPN:
Rp18.999.900 - Rp21.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Voltage (V) | 300.0/600 (auto range) |
|---|---|
| Accuracy | Voltage: ±2%rdg±4dgt, Frequency: ±0.5%rdg±2dgt |
| Applicable Standard | Compliant with JIS C 1302:2018, IEC 61010-1, IEC 61010-2-030 CAT IV 300V/CAT III 600V Pollution Degree 2, IEC 61010-2-034, IEC 61557-1, 2, 3, 4, 5, 6, 7, 10, IEC 60529 (IP40) |
| Communication Interface | USB, Bluetooth(R) 5.0 |
| Dimensions, Length L x Width W x Depth D (mm) | 136x235x114 |
| Display | Normal phase: Displays \"Normal phase\" and \"Right rotation mark\", Reverse phase: Displays \"Reverse phase\" and \"Left rotation mark\" |
| Frequency Measuring Range (Hz) | 45~65 |
| Mass (g) | Approximately 1300 (including batteries) |
| Measurement Voltage (V) | 2~600 |
| Measuring Range | Phase detection: 3 to 600V (45 to 65Hz), Hand-cranked motor phase detection: 0.1 to 2V (1 to 10Hz) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable Battery | 8 x AA LR6 (1.5V) batteries |
