Current / voltage / resistance auto-function model. Clamp meter, tester, voltage detector, 3 roles!
In addition to the AC clamp function, it is equipped with AC / DC voltage measurement, resistance value measurement, frequency measurement, and continuity check function.
Voltage and resistance are automatically switched.
With non-contact voltage detection function (NCV) function, backlight function, and auto power off function.
* We do not deliver to private homes (detached houses / apartments). * Depending on the delivery location, the delivery date may be postponed and additional shipping charges may be incurred. * Wear insulating protective equipment in and around the measurement target where electric shock is expected. * If the backlight is used a lot, the battery life will be shortened.
* Products with a calibration certificate will be calibrated at the time of shipment, and the relevant calibration-related documents will be attached.

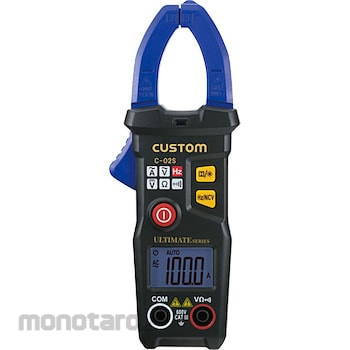

Custom Mini AC clamp meter
#Grup produk P113826937
Spesifikasi
| AC Current (A) | 6/60/200 |
|---|---|
| AC Voltage (V) | 1.0~600 |
| Calibration | Possible |
| Dimensions, Width W x Height H x Depth D (mm) | 63x158x28 |
| Display | LCD display, 6000 counts |
| Frequency (Hz) | Range: 40-60/60-1000, Resolution: 0.1/1, Accuracy/Frequency: ± (1.0% rdg + 5dgt) |
| Height (mm) | 158 |
| Included Accessories | Storage case, test lead |
| Length (mm) | 28 |
| Mass (g) | About 136 |
| Operating Temperature/Humidity Range | 0 to + 40 ° C, 75% RH or less (no condensation) |
| Part Number | C-02S (with calibration certificate, inspection report, and traceability) |
| Power Supply | 2 x AAA batteries |
| Range Switching | Auto range |
| Resistance (Ω) | 0~6k |
| Sampling | 3 times/sec |
| Storage Temperature/Humidity Range | -10 to + 50 ° C, 75% RH or less (Battery not included, no condensation) |
| Trusco Part No. | 837-1232 |
| Width (mm) | 63 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationNon-contact voltage detection/AC 90-1000V: Beep sounds and LED flashes
