KYORITSU ELECTRICAL INSTRUMENTS Load current detection type flexible clamp sensor
#Grup produk P113825956
Sebelum PPN:
Rp7.099.900 - Rp8.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy | ±1.0%rdg±0.5mV(45Hz~65Hz)(0~50A),±1.5%rdg±0.5mV(40Hz~300Hz)(0~20A),±1.5%rdg±0.5mV(300Hz~1kHz)(0~5A) |
|---|---|
| Applicable Standard | IEC 61010-1, IEC 61010-2-032 CAT IV 300V/CAT III 600V Contamination degree 2, IEC 61326 |
| Cable Length (m) | About 3 |
| Feature | (Phase characteristics) 45-65Hz: within ± 3.0 °, 40-1kHz: within ± 4.0 ° |
| Mass (g) | About 170 |
| Operating Temperature Range (°C) | -10~50 |
| Operation Environment | Altitude 2000m or less, indoors |
| Output Impedance (ohm) | Under 100 |
| Output Terminal | MINI DIN 6PINc |
| Output Voltage | AC500mV/AC50A(10mV/A) |
| Rated Current (A) | AC50 |
| Relative Humidity | 85% or less (no condensation) |
| Suitable Model | 5010,5020,6305,6315,6315WHM |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

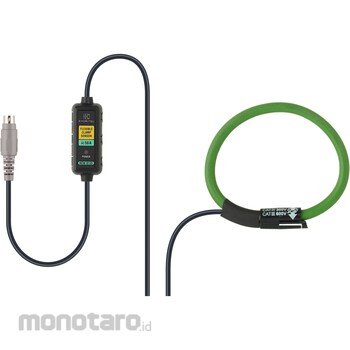

Flexible clamp sensor ideal for measuring low currents such as 5A CT terminals! Diameter max. Φ75mm Capable of measuring currents up to AC 50A Adopts an air core coil, flexible and lightweight Compatible with international safety standards IEC 61010-1 CAT IV 300V/CAT III 600V
