Compact and lightweight model that fits in the palm of your hand Analog 2-range type Equipped with an easy-to-read scale scale that is color-coded by voltage range Equipped with scale version illumination, auto discharge function, and a probe with remote switch as standard equipment
*Shocks such as dropping or storage at high temperatures may cause malfunction and are not covered by the warranty.
[Products with proofreading documents cannot be canceled after ordering] *Products with proofreading documents and traceability system diagrams can only be ordered online.
*Applicable documents are included only with products whose part number includes (JCSS calibration book included), (general calibration book/traceability system diagram included), or (calibration book/traceability system diagram included).

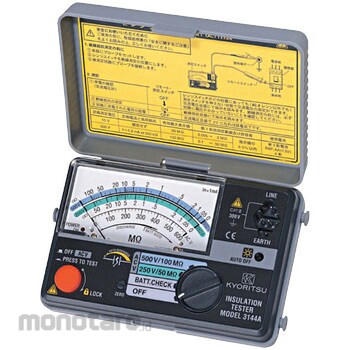

KYORITSU ELECTRICAL INSTRUMENTS Insulation resistance tester
#Grup produk P113824391
Spesifikasi
| Accuracy | Accuracy under standard conditions: ±5% of indicated value, Accuracy under standard conditions: ±10% of indicated value, Accuracy of 0 and ∞ scales: 0.7% or less of scale length, Voltmeter accuracy: ±3% of maximum scale value |
|---|---|
| Applicable Standard | JIS C 1302: 2002 compliant (15V/20MΩ range is not applicable), IEC 61010-1 CAT III 300V/CAT II 600V |
| Calibration Certificate | General calibration |
| Dimensions, Width W x Height H x Depth D (mm) | 137x90x40 |
| Included Accessories | 7149A (measurement probe set with remote switch), 9123 (shoulder strap), 4 AA batteries (R6), instruction manual |
| Length (mm) | 40 |
| Mass (g) | Approx. 340 (including battery) |
| Power Supply | AA batteries (R6P) x 4 (1.5V) |
| Protection Class | IP40 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Short Circuit Current (mA) | DC 2.2 or less |
| Suitable Battery | AA batteries R6 (1.5V) x 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationOpen circuit voltage: 1.2 times or less of the rated measurement voltage value. Central display value: 1MΩ/2MΩ
