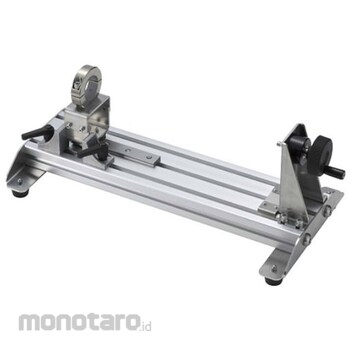

IMADA HTGS/A Rotation Auxiliary Jig RSH Series

This is a manual rotation assist jig exclusively for the HTGS/HTGA series torque gauges.
By continuing to turn the knob, you can continuously measure the rotation of the measurement sample.
By combining it with an attachment that matches the sample, it can be used as a simple testing machine to measure various torques.
The model with an angle meter can also be used in combination with the HTGA series to analyze the relationship between torque and angle.
The RSH series is a rotation support jig exclusively for the HTGS/A series torque gauges (torque meters) that support a maximum load of 5 N-m (500 N-cm). It is ideal for measuring torque in the horizontal direction. While it is difficult to rotate the object being measured more than 360 degrees continuously by hand, this jig makes it easy to rotate the object more than 360 degrees and continue rotating it by simply turning the knob.
