Polarization Index (PI) and Dielectric Absorption Ratio (DAR) are automatically calculated and displayed. Equipped with a filter function to reduce fluctuations in the displayed values.
Insulation resistance can be measured using the G terminal grounding method. Output voltage and auto-discharge voltage are displayed on the monitor. Large display (with bar graph and backlight)
Compliant with international safety standards IEC 61010-1 CAT IV 300V / CAT III 600V
*If the delivery destination is a private residence (detached house/complex housing), the store name is required. Please note that delivery may not be possible if there is no store name.

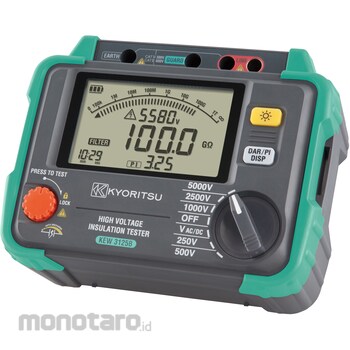

KYORITSU ELECTRICAL INSTRUMENTS High voltage insulation tester
#Grup produk P113823693
Sebelum PPN:
Rp19.999.900 - Rp23.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy | [Insulation resistance meter] (250V) ±5%rdg±3dgt, (500V) ±5%rdg±3dgt, (1000V) ±5%rdg±3dgt, (2500V) ±5%rdg±3dgt, (5000V) ±5%rdg±3dgt, ±20% (100GΩ or more), [Voltmeter] ±2%rdg±3dgt |
|---|---|
| Applicable Standard | IEC 61010-1 CAT IV 300V/CAT III 600V Pollution Degree 2 |
| Dimensions, Length L x Width W x Depth D (mm) | 177x226x100 |
| Included Accessories | 7165A (Line Probe), 7264 (Earth Cord), 7265 (Guard Cord), 8019 (Tip Hook), 9205 (Hard Case), 8 x C Alkaline Batteries, Instruction Manual |
| Mass (kg) | Approx. 1.9 (including batteries) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Short Circuit Current (mA) | 1.5 |
| Suitable Battery | 8 x LR14 (1.5V) C alkaline batteries |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationRated measurement current: (250V) 0.25MΩ load: 0.7mA or more, 0.9mA or less; (500V) 0.5MΩ load: 0.8mA or more, 1mA or less; (1000V) 1MΩ load: 1mA or more, 1.2mA or less; (2500V) 2.5MΩ load: 1mA or more, 1.2mA or less; (5000V) 5MΩ load: 1mA or more, 1.2mA or less; Open circuit voltage: (250V) 250V DC/-10 to 10%; (500V) 500V DC/-10 to 20%; (1000V) 1000V DC/-0 to 20%; (2500V) 2500V DC/-0 to 20%; (5000V) 5000V DC/-0 to 20%
