A powerful ally for single-phase three-wire load balancing and current measurement of DC circuits! A newly developed open sensor allows AC/DC current measurement. Non-contact voltage sensing function checks live wires. DC current range has zero adjustment function. One-touch zero adjustment data hold function (AC A/DC A only) International safety standard IEC 61010-1 CAT. III300V compliant
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.
KYORITSU ELECTRICAL INSTRUMENTS Fork current tester
#Grup produk P113822658
Spesifikasi
| AC Current (A) | 0~100 |
|---|---|
| Accuracy | AC current: 0~100A ±2%rdg±5dgt(50/60Hz).DC current: 0~100A ±2.0%rdg±5dgt |
| Applicable Standard | IEC61010-1 Overvoltage CAT. III 300V Contamination degree 2 |
| Calibration Certificate | General calibration |
| Continuous Operating Time (hour) | ACA: approx. 46 DCA: approx. 52 |
| DC Current (A) | 0~100 |
| Dimensions, Width W x Height H x Depth D (mm) | 40x161x30 |
| Feature | True RMS measurement is effective for distorted waveforms. Auto power-off function |
| Included Accessories | Instruction manual, R03 (UM-4: AAA battery) x 2, carrying case |
| Length (mm) | 30 |
| Mass (g) | 110 (including batteries) |
| Maximum Display | 1049 count |
| Part Number | KEW2300R (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | AAA battery R03 (1.5V) x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | AC/DC 0.1A (min) |
| Suitable Battery | 2 x AAA batteries R03 (1.5V) (auto power off after approx. 10 minutes) |
| Voltage Sensing Function | NCV: Non-contact voltage detection (for both uncovered and bare wires). When voltage of 80V or more is detected, the \"Hi\" indicator flashes and the buzzer sounds intermittently. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature

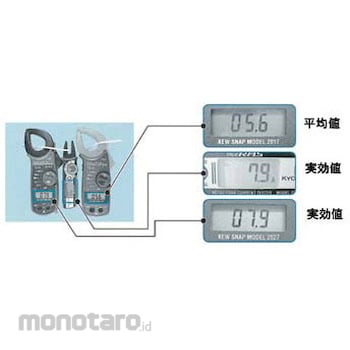

SpecificationCrest factor: This is the ratio of peak value to effective value, and indicates the dynamic range. The crest factor for a sine wave with no waveform distortion is 1.41. Any deviation from this value means that the waveform is distorted.
