The wide opening allows for clamping of samples from thin to thick, making it suitable for a wide range of tensile measurements.
You can choose from the cost-effective standard type or the versatile general-purpose type.
We can also accommodate custom orders, such as changing dimensions, materials, and load capacity, to suit the sample and measurement conditions.
Measurements partially compliant with JIS, ISO, etc. are possible (only compatible with GCF-1200 wave tooth specifications).
The GC-series is a flat chuck that can support a maximum load of 5000 N. Its wide opening allows it to hold samples ranging from thin to thick, making it suitable for a wide range of tensile measurements.

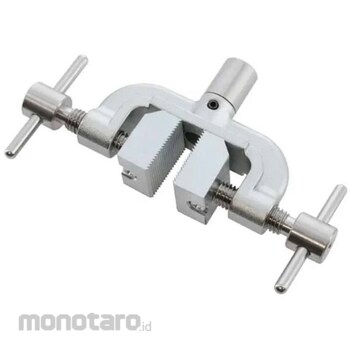

IMADA Flat chuck GC series
#Grup produk P113822232
Spesifikasi
| Function | Claw replacement, neck fixation function |
|---|---|
| Length (mm) | 20 |
| Mass of Main Unit (g) | About 170 |
| Maximum Working Load (N) | 1000 |
| Mounting Screw Diameter | M6 |
| Tip Width (mm) | 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Maximum opening width: 20 mm *Maximum swing angle (mounting part): Approximately 20 degrees
