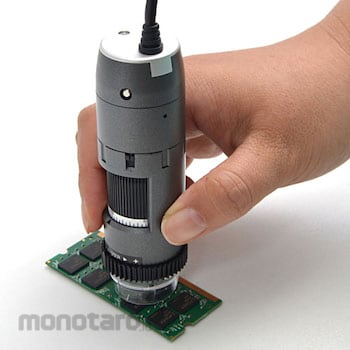

It is a telephoto edge model equipped with EDOF / EDR / AF / functions. The EDOF (Enhanced Depth of Field) function expands the depth of field (focus range) by combining a series of images with different focal points and synthesizing a single image. In addition, the EDR (enlarged dynamic range) function expands the dynamic range (bright and dark range) by combining a series of images with different exposures and synthesizing a single image. The AF (autofocus) function detects the optimum focus.
Various research, board check, precision product management, printed matter check, blade inspection, etc.
* The scale of the magnification attached to the main body is a guide. Accurate numerical values can be measured with dedicated software.
ANMO Dino-Lite Edge EDR/EDOF LWD
#Grup produk P113820377
Spesifikasi
| Applicable Standard | CE,FCC,ROHS |
|---|---|
| Diameter x Length (mm) | 32x105 |
| Exposure Compensation | Automatic exposure/automatic correction/automatic color balance/saturation/contrast correction |
| Frame Rate | 30fps |
| Included Accessories | 5 types of tip attachments, software CD-ROM, calibration sheet, warranty card, storage bag, cable band |
| Interface | USB2.0 |
| Magnification (times) | 20~90 |
| Mass (g) | 104 |
| Number of pixels | About 1.3 million pixels |
| Power Supply | USB pass power |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | 1280x1024 |
| Sensor | 1.3Mpixels, 1/4 inch CMOS |
| Supported OS | Windows XP/Vista/7/8/10, Mac OSX 10.5 or later |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification8 white LED lights, measurement function (guideline), calibration function
