Large, easy-to-read display (6,000 counts, backlit) True RMS measurement for accurate measurements even with distorted waveforms Compliant with IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V Using optional clamp sensor , easy measurement of current value (current value can be read directly in SENSOR mode)
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

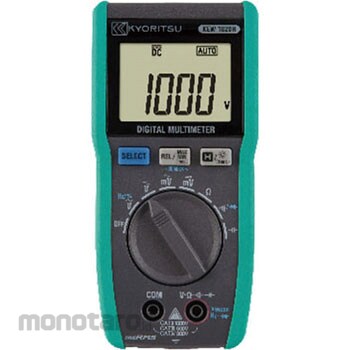

KYORITSU ELECTRICAL INSTRUMENTS Digital Multimeters
#Grup produk P113819575
Sebelum PPN:
Rp1.999.900 - Rp4.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Applicable Standard | IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V Pollution Degree 2, IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS) |
|---|---|
| Capacitance (F) | 60.00/600.0nF/6.000/60.00/600.0/1000μF,±2.0%rdg±5dgt (60/600nF), ±5.0%rdg±5dgt (6/60/600/1000μF) |
| Clamp | [DC sensor] 60.00/200.0A (auto range), ± 1.5% rdg ± 3dgt (+ sensor accuracy) |
| DUTY | 10.0 ~ 90.0% ±1.0%rdg±3dgt [50/60Hz] |
| Dimensions, Width W x Height H x Depth D (mm) | 75x155x40 |
| Diode Test | Open circuit voltage: <3.0V |
| Frequency | ACV 99.99/999.9Hz/9.999/99.99kHz |±0.1%rdg|±3dgt |
| Height (mm) | 155 |
| Length (mm) | 40 |
| Mass (g) | Approximately 250 (including batteries) |
| Power Supply | AAA battery R03 (1.5V) x 2 |
| Resistance (Ω) | 600.0/6.000/60.00/600.0k/6.000/40.00M (auto range), ± 0.5% rdg ± 4dgt (600Ω), ± 0.5% rdg ± 2dgt (6/60/600kΩ/6MΩ), ± 1.5% rdg ± 3dgt (40MΩ) |
| Suitable Battery | AAA battery R03 (1.5V) x 2 (auto power save about 15 minutes) |
| Width (mm) | 75 |
