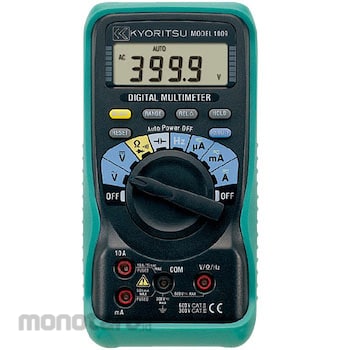

A high-performance, low-cost digital multimeter that can measure not only voltage (DC/AC), resistance, and continuity, but also current (DC/AC). 4000 count display. Switchable between auto range and manual range with range hold button Diode test function Capacitance measurement function Comparison measurement function Continuity test 10A measurement terminal included (AC/DC available)
*Shocks such as drops or storage at high temperatures may cause malfunction and are not covered by the warranty. [Products with calibration certificates cannot be canceled after ordering] *Products with calibration certificates and traceability diagrams can only be ordered online. It becomes.
*Applicable documents are included only with products whose part number includes (JCSS calibration book included), (general calibration book/traceability system diagram included), or (calibration book/traceability system diagram included).
KYORITSU ELECTRICAL INSTRUMENTS Digital Multimeters
#Grup produk P113819511
Spesifikasi
| AC Current (A) | 400/4000μ/40/400m/4/10 ±2.6% rdg±4dgt(400/4000μA) ±2.0% rdg±4dgt(40/400mA/4/10A) |
|---|---|
| AC Voltage (V) | 400m/4/40/400/600(Input impedance: 10MΩ) ±1.6%rdg±4dgt(20-400mV) ±1.3%rdg±4dgt(4/40V) ±1.6%rdg±4dgt(400/600V) |
| Applicable Standard | IEC 61010-1 CAT III 300V,IEC 61326-1 |
| Capacitance (F) | 40n/400n/4/40/100μ |
| DC Current (A) | 400/4000μ/40/400m/4/10±2%rdg±4dgt(400/4000μA)±1%rdg±4dgt(40/400mA)±1.6%rdg±4dgt(4/10A) |
| DC Voltage (V) | 400m/4/40/400/600(Input impedance: 10MΩ) ±0.6%rdg±4dgt(400mV/4/40/400V) ±1.0rdg±4dgt(600V) |
| DUTY | 0.1 to 99.9% (pulse width/pulse period) ±2.5%rdg±5dgt |
| Dimensions, Width W x Height H x Depth D (mm) | 82x161x50 |
| Diode Test | Open circuit voltage: Approximately 1.5V (0.4mA measurement current) |
| Frequency Measuring Range (Hz) | 5.12/51.2/512/5.12k/51.2k/512k/5.12M/10M ±0.1%rdg±5dgt (Input sensitivity Current: 200μA[~10kHz] Voltage: 1.5V[~10kHz] or more/Hz: 1.5V[~1MHz], 2V[>1MHz] or more) |
| Included Accessories | Measurement code, fuse (0.5A/250V), fuse (10A/250V), AA batteries x 2 |
| Length (mm) | 50 |
| Mass (g) | Approx. 280 (including batteries) |
| Part Number | MODEL1009 (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | AA battery x2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 400/4/40/400k/4/40M ±1%rdg±4dgt(400Ω/4/40/400kΩ/4.000MΩ) ±2%rdg±4dgt(40MΩ) |
| Suitable Battery | 2 x AA R6 (1.5V) batteries (auto power off after approx. 30 minutes) |
