Pocket size DMM effective value type with clamp AC/DC current measurement is possible with the new open core sensor with reinforced protective bushing Measured conductor diameter Φ12mm (compatible up to IV38mm 2 ) True RMS measurement DCA zero that can accurately measure even distorted waveforms One-touch adjustment with short-circuit prevention measurement cord cap included (removable) Diode and capacitance measurement function Pocket size for convenient storage Shock-resistant holster case Minimum resolution AC/DC 0.01A Tip pin length 18mm
* Only orders can be placed online.

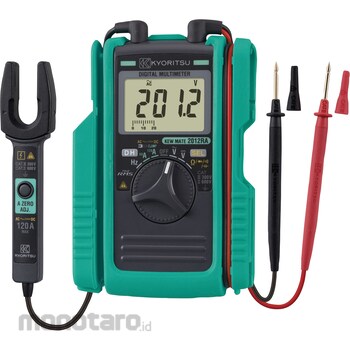

KYORITSU ELECTRICAL INSTRUMENTS Digital multimeter with AC/DC clamp
#Grup produk P113819414
Sebelum PPN:
Rp2.699.900 - Rp5.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Current (A) | 60/120,±2%rdg±5dgt(45~65Hz) |
|---|---|
| AC Voltage (V) | 6/60/600 (input impedance: approx. 10MΩ), ±1.5%rdg±5dgt (45-400Hz) |
| Applicable Standard | IEC 61010-1 CAT III 300V/CAT II 600V Pollution Degree 2, IEC 61010-2-032, IEC 61326-1 |
| Capacitance (F) | 400n/4/40μ,±2.5%rdg±10dgt |
| Continuity | Buzzer sounds when 35 ± 25Ω or less Buzzer sounds when 35 ± 25Ω or less |
| Continuous Operating Time (hour) | DCV: Approx. 150 . ACA: Approx. 25 (Auto power save approx. 15 minutes) |
| DC Current (A) | 60/120±2%rdg±8dgt(60)±2.0%rdg±5dgt(120) |
| DC Voltage (V) | 600m/6/60/600, (Input impedance: 10MΩ), ±1%rdg±3dgt |
| Dimensions, Width W x Height H x Depth D (mm) | 92x128x27 |
| Diode Test | 2V ±3%rdg±5dgt Open voltage: approx. 2.7V |
| Included Accessories | AAA battery R03 (1.5V) x 2, instruction manual |
| Length (mm) | 27 |
| Mass (g) | Approx. 220 (including batteries) |
| Power Supply | AAA battery R03 (1.5V) x 2 |
| Resistance (Ω) | 600/6/60/600k/60M,±1%rdg±5dgt(600Ω/6/60/600kΩ),±2%rdg±5dgt(6MΩ),±3%rdg±5dgt(60MΩ) |
| Suitable Battery | AAA battery R03 (1.5V) x 2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationTip pin length: 18mm
