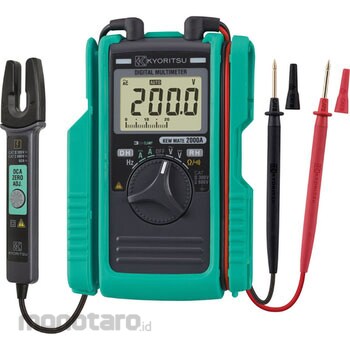

Pocket size DMM with clamp AC/DC current measurement is possible with the open core type clamp sensor with new reinforced protective bushing. 3400 count display with bar graph. Pocket size for convenient storage. Impact resistant holster case. Minimum resolution AC/DC 0.1A. Tip pin length. 18mm
* Only orders can be placed online.
KYORITSU ELECTRICAL INSTRUMENTS Digital multimeter with AC/DC clamp
#Grup produk P113819399
Sebelum PPN:
Rp1.799.900 - Rp4.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Voltage (V) | 3.4/34/340/600 (input impedance: 10MΩ) ±1.5%rdg±5dgt (50 to 400Hz) |
|---|---|
| Applicable Standard | IEC 61010-1 CAT III 300V/CAT II 600V Pollution Degree 2, IEC 61010-2-032, IEC 61326-1 |
| Continuity | Buzzer sounds when 30 ± 10Ω or less |
| Dimensions, Width W x Height H x Depth D (mm) | 91x128x27 |
| Frequency (kHz) | (Current) 3.4/10±0.1%rdg±1dgt, (Voltage) 3.4/34/300±0.1%rdg±1dgt (Input sensitivity Current: 15A/Voltage: 30V or more) |
| Included Accessories | AAA battery R03 (1.5V) x 2, instruction manual |
| Length (mm) | 27 |
| Mass (g) | Approx. 220 (including batteries) |
| Power Supply | AAA battery R03 (1.5V) x 2 |
| Resistance (Ω) | 340/3.4/34/340k/3.4/34M,±1%rdg±3dgt(0~340kΩ),±5%rdg±5dgt(3.4MΩ),±15%rdg±5dgt(34MΩ) |
| Resolution | AC/DC 0.1A(min) |
| Suitable Battery | AAA battery R03 (1.5V) x 2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationTip pin length: 18mm
