Measures DC minute current signals of 4 to 20 mA without disconnecting the measurement circuit. Records 192,000 large amounts of data. Transfers recorded data to a PC via wireless communication (Bluetooth). Outputs measured values to a recorder, digital multimeter, etc. Analog output function with high accuracy of ±0.2%, high resolution of 0.01mA Measured conductor diameter Φ6mm Backlight and LED light that illuminates the measured object Standard external power supply capable of long-term recording
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

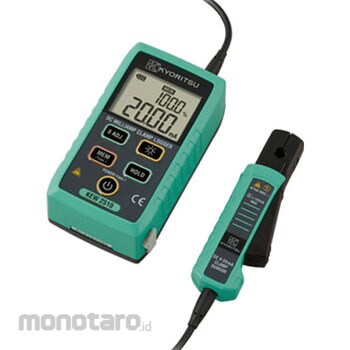

KYORITSU ELECTRICAL INSTRUMENTS Dc milliamp clamp meter
#Grup produk P113818114
Spesifikasi
| Applicable Standard | IEC 61010-1, Pollution Degree 2, IEC 61010-2-032, IEC 61326-1, IEC 60529 IP40 |
|---|---|
| Cable Length (m) | 700 (sensor integrated type) |
| Continuous Operating Time (hour) | Approx. 50 LR6 (auto power off approx. 10 minutes), (backlight, LED light off, no Bluetooth(R) communication) |
| DC Current (A) | 20/100m |
| DC Voltage | 20/100mA (2 range auto), ± 0.2% ± 5dgt (0.00mA ~ 21.49mA), ± 1.0% ± 5dgt (21.0mA ~ 120.0mA) |
| Dimensions, Width W x Height H x Depth D (mm) | (Main body) 61, (Sensor) 34 x (Main body) 111, (Sensor) 104 x (Main body) 46, (Sensor) 20 |
| Included Accessories | Carrying case (9096), AC adapter (8260), KEW Windows for 2510 (software), AA batteries LR6 x 4, instruction manual, installation manual |
| Length (mm) | (Main body) 46, (Sensor) 20 |
| Mass (g) | Approx. 310 (including battery) |
| Operating Temperature/Humidity Range | -10 to 50°C, 85% or less (no condensation), when using AC adapter: 0 to 40°C, 85% or less (no condensation) |
| Part Number | KEW2510 (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | AA batteries R6/LR6 (1.5V) x 4 |
| Recorder Output | DC10mV for DC1mA |
| Resolution | 0.01mA |
| Set Contents | Carrying case (9096), AC adapter (8260), KEW Windows for 2510 (software), AA batteries LR6 x 4, instruction manual, installation manual |
| Storage Temperature/Humidity Range | -20 to 60°C, 85% or less (no condensation) |
| Suitable Battery | 4 AA batteries (alkaline LR6 recommended), external power supply (AC adapter 8260) |
