Capable of measuring up to a maximum measurement current of 300A. Includes data hold function, auto zero adjustment function (DCA), and auto sleep function. Teardrop format with a core diameter of approximately 24 mm.
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

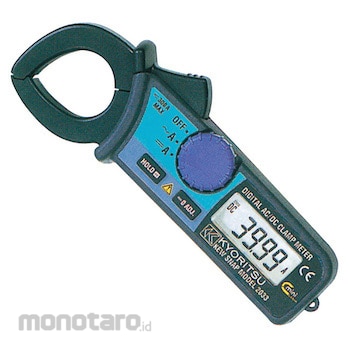

KYORITSU ELECTRICAL INSTRUMENTS CueSnap AC/DC Clamp Meter
#Grup produk P113817878
Spesifikasi
| AC Current (A) | 40/300 |
|---|---|
| Applicable Standard | IEC61010-1 (JIS C 1010-1) CAT.III 300V Pollution degree 2, IEC61010-2-032 (JIS C 1010-2-32) |
| Auto Sleep Function | About 5 minutes |
| Automatic Power Off | About 5 minutes |
| Continuous Operating Time (hour) | Approx. 10 (Auto power save: Approx. 5 minutes) |
| DC Current (A) | 40/300 |
| Dimensions, Width W x Height H x Depth D (mm) | 59x147x25 |
| Included Accessories | 9090 (carrying case), button battery LR-44 x 2, instruction manual |
| Length (mm) | 25 |
| Mass (g) | Approximately 100 (including batteries) |
| Part Number | MODEL2033 (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | Button battery LR-44 (1.5V) x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | 0.01A(min) |
| Response Time (s) | About 2 |
| Safety Standard | IEC61010-1 (JIS C 1010-1) CAT.III 300V Contamination degree 2 IEC61010-2-032 (JIS C 1010-2-32) |
| Suitable Battery | Button battery LR-44 (1.5V) x 2 |
