Compact, high-performance leakage current clamp meter With frequency characteristic selection switch With data hold switch With auto power save function Designed to have extremely little influence from external magnetic fields
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

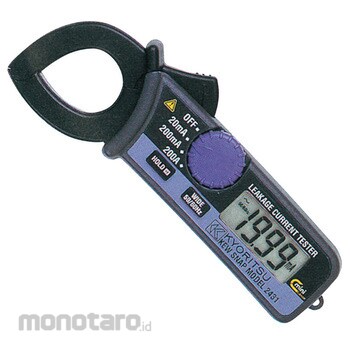

KYORITSU ELECTRICAL INSTRUMENTS Cue Snap AC Leak Clamp Meter
#Grup produk P113817850
Spesifikasi
| AC Current (A) | 20/200m/200 |
|---|---|
| Accuracy | AC current (50/60Hz): ±3%rdg±5dgt (20mA/200mA/100A), ±5%rdg±5dgt (100.1 to 200A), AC current (WIDE): ±2%rdg±4dgt (20mA)/200mA/100A)(50/60Hz), ±5%rdg±6dgt(20mA/200mA/100A)(40Hz to 400Hz), ±5%rdg±4dgt(100.1 to 200A)(50/60Hz) |
| Applicable Standard | IEC61010-1 (JIS C 1010-1) CAT.III 300V Pollution degree 2, IEC61010-2-032 (JIS C 1010-2-32) |
| Automatic Power Off | About 10 minutes |
| Continuous Operating Time (hour) | Approx. 15 minutes (auto power off approx. 10 minutes) |
| Dimensions, Width W x Height H x Depth D (mm) | 60x149x26 |
| Included Accessories | 9090 (carrying case), button battery LR-44 x 2, instruction manual |
| Length (mm) | 26 |
| Mass (g) | Approximately 120 (including batteries) |
| Part Number | MODEL2431 (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | Coin cell battery LR-44 x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | 0.01mA (min) |
| Response Time (s) | About 2 |
| Safety Standard | IEC61010-1 (JIS C 1010-1) CAT.III 300V Contamination degree 2 IEC61010-2-032 (JIS C 1010-2-32) |
| Suitable Battery | Button battery LR-44 (1.5V) x 2 |
