Equipped with Bluetooth for real-time waveform observation Large diameter clamp with a diameter of 75 mm Compatible with various wiring methods (single-phase 2-wire, single-phase 3-wire, 3-phase 3-wire, 3-phase 4-wire) Harmonic measurements up to 30th order possible Maximum measurement Current 1000A Maximum measurement voltage 1000V Equipped with Bluetooth communication function
* Only orders can be placed online.

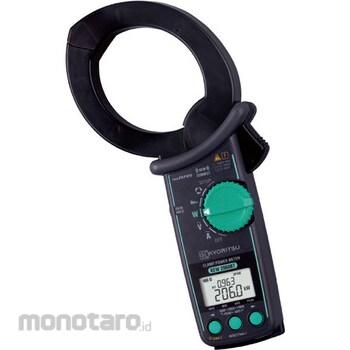

KYORITSU ELECTRICAL INSTRUMENTS Clamp power meter with Bluetooth
#Grup produk P113816392
Sebelum PPN:
Rp11.999.900 - Rp14.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Current (A) | 40.00/400.0/1000 |
|---|---|
| AC Voltage (V) | 1000 |
| Applicable Standard | IEC + 61010-1, + IEC + 61010-2-032 +, CAT + IV + 600 + V +/+ CAT + III + 1000 + V + Contamination +2, IEC + 61326+ (EMC) +, + EN50581 + (RoHS) ), + IEC + 60529 + (IP40) |
| Continuous Operating Time (hour) | Approximately 58 (auto power off approximately 15 minutes) |
| Crest Factor | AC voltage: 1.7+ or less, AC current: 40.00A/400.0A range is 3 or less, + 1000A range is 3 or less 1500Apeak |
| Dimensions, Width W x Height H x Depth D (mm) | 143x283x50 |
| Display Range | Power factor: -1.000 to 0.000 to +1.000, phase difference (single-phase 2-wire only): -180.0 to 0.0 to +179.9 |
| Function | Maximum/minimum/average/peak, + data hold, + backlight, + Bluetooth communication function |
| Height (mm) | 283 |
| Included Accessories | 7290 (voltage measurement code), 9198 (soft case), AA batteries LR6 x 2, instruction manual |
| Interface | Bluetooth(R) 5.0, Android(TM) 5.0 or later, iOS 10.0 or later |
| Length (mm) | 49 |
| Mass (g) | Approximately 590 (including batteries) |
| Measuring Item | Calculation: Voltage, current, frequency, active power, reactive power, apparent power, power factor, harmonics (THD-R/THD-F), phase difference, phase detection |
| Power Supply | AA alkaline batteries LR6 + (1.5V) + x 2 |
| Range | AC voltage: 1000V, AC current: 40.00/400.0/1000A (auto range), active power: 40.00/400.0/1000kW (auto range), apparent power: 40.00/400.0/1000kVA (auto range), reactive power: 40.00/400.0/1000kVar (auto range) |
| Width (mm) | 143 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationAnalysis order: analysis order, phase detection: ACV80 to 1100V (45 to 65Hz)
