Save leakage current measurements on your smartphone or tablet on-site! Designed to have very little influence from external magnetic fields. Includes frequency switching function that can eliminate the effects of harmonics. AC 40/400mA/400A 3 range switching. Data hold function. Peak hold function included. True RMS value indication that is resistant to distorted waves and thyristor waveforms Minimum resolution 0.01mA
* Only orders can be placed online.

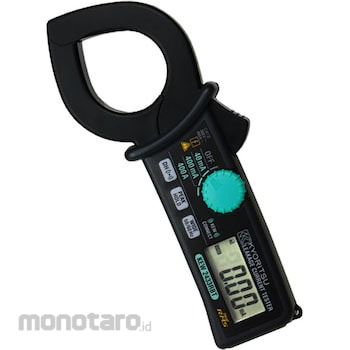

KYORITSU ELECTRICAL INSTRUMENTS Clamp meter with Bluetooth for measuring leakage current and load current
#Grup produk P113816374
Spesifikasi
| AC Current (A) | 40/400m/400 |
|---|---|
| Accuracy | AC current (50/60Hz): ±1%rdg±5dgt(0-300A)/±2%rdg(300-400A), AC current (WIDE): ±2.5%rdg±10dgt(20 Hz~1kHz)(0~100A)/±2.5%rdg±10dgt(40Hz~1kHz)(100~300A)/±5%rdg(40Hz~1kHz)(300~400A) |
| Applicable Standard | IEC 61010-1 (JIS C 1010-1) CAT III 300V Contamination degree 2/IEC 61010-2-032 (JIS C 1010-2-32) |
| Calibration Certificate | General calibration |
| Continuous Operating Time (hour) | Approximately 24 (auto power off approximately 10 minutes) |
| Dimensions, Width W x Height H x Depth D (mm) | 81x185x32 |
| Frequency Range (Hz) | 20~1k(40~1k:400A) |
| Included Accessories | 9097 (carrying case), AAA battery R03 x 2, instruction manual |
| Interface | Communication: Bluetooth (R) 4.0 LE (Bluetooth (R) SMART) installed/Android (TM) 5.0 or higher, iOS 10.0 or higher |
| Length (mm) | 32 |
| Mass (g) | 270 (including batteries) |
| Part Number | KEW2433RBT (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | AAA battery R03 (1.5V) x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Response Time (s) | About 2 |
| Suitable Battery | AAA battery R03 (1.5V) x 2 |
