Equipped with a recorder output terminal with a changeover switch that can eliminate the effects of harmonics.
Comes with an external power terminal, making it effective for long-term leakage current monitoring.
*Shocks such as dropping or storage at high temperatures may cause malfunction and are not covered by the warranty.
[Products with proofreading documents cannot be canceled after ordering] *Products with proofreading documents and traceability system diagrams can only be ordered online.
*Applicable documents are included only with products whose part number includes (JCSS calibration book included), (general calibration book/traceability system diagram included), or (calibration book/traceability system diagram included).

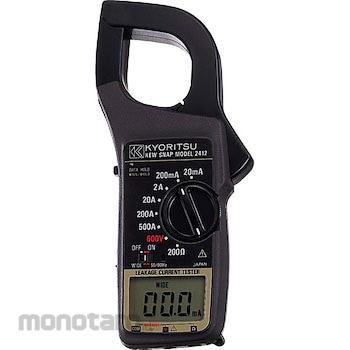

KYORITSU ELECTRICAL INSTRUMENTS Clamp meter for leakage current measurement
#Grup produk P113816356
Sebelum PPN:
Rp7.099.900 - Rp9.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Current (A) | 200m/2/20/200/1000 |
|---|---|
| AC Voltage (V) | 600 |
| Continuous Operating Time (hour) | Approximately 100 (auto power off approximately 60 minutes) |
| Dimensions, Width W x Height H x Depth D (mm) | 96x209x45 |
| Frequency Range (Hz) | 40~400 |
| Included Accessories | Measurement code (7066), carrying case (9072), output plug (8025), 006P x 1, instruction manual |
| Length (mm) | 45 |
| Mass (g) | Approximately 450 (including batteries) |
| Power Supply | 006P (square 9V) x 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Recorder Output | DC200mV for the maximum value of each range (50mV for the 500A range) |
| Resistance (Ω) | 200±1.5%rdg±5dgt |
| Resolution | 0.01mA (minimum) |
| Suitable Battery | 006P(9V)x1 |
