Designed to have extremely little influence from external magnetic fields due to the adoption of a high-performance shield core. 3 range switching AC4/40mA/100A with peak hold function.
High sensitivity type allows measurement with minimum resolution of 0.001mA
*Shocks such as dropping or storage at high temperatures may cause malfunction and are not covered by the warranty.
[Products with proofreading documents cannot be canceled after ordering] *Products with proofreading documents and traceability system diagrams can only be ordered online.
*Applicable documents are included only with products whose part number includes (JCSS calibration book included), (general calibration book/traceability system diagram included), or (calibration book/traceability system diagram included).

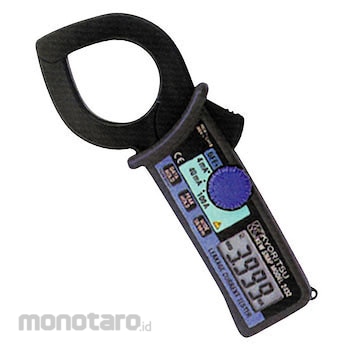

KYORITSU ELECTRICAL INSTRUMENTS Clamp meter for leakage current measurement
#Grup produk P113816338
Spesifikasi
| AC Current (A) | 4/40m/100 |
|---|---|
| Accuracy | AC current (50/60Hz): ±1% rdg±5dgt(4/40mA), ±1%rdg±5dgt(0-80A), ±5% rdg(80.1-100A)/AC current (WIDE): ±2.5 %rdg±10dgt(4/40mA)(20Hz~1kHz), ±2.5% rdg±10dgt(0~80A)(40Hz~1kHz),±10% rdg(80.1~100A)(40Hz~1kHz) |
| Applicable Standard | IEC 61010-1 (JIS C 1010-1) CAT III 300V Pollution Degree 2, IEC 61010-2-032 (JIS C 1010-2-32) |
| Continuous Operating Time (hour) | Approximately 40 (auto power off approximately 10 minutes) |
| Dimensions, Width W x Height H x Depth D (mm) | 81x185x32 |
| Frequency Range (Hz) | 20~1K |
| Included Accessories | Carrying case (9052), AAA batteries R03 x 2, instruction manual |
| Length (mm) | 32 |
| Mass (g) | 290 (including batteries) |
| Part Number | MODEL2432 (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | AAA battery R03 (1.5V) x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | 0.001mA (minimum) |
| Response Time (s) | About 2 |
| Suitable Battery | AAA battery R03 (1.5V) x 2 |
