Equipped with a selector switch that can eliminate the effects of harmonics.Equipped with an analog output terminal.
Adoption of a large-diameter core makes it effective for 3-phase batch measurement
*Shocks such as dropping or storage at high temperatures may cause malfunction and are not covered by the warranty.
[Products with proofreading documents cannot be canceled after ordering] *Products with proofreading documents and traceability system diagrams can only be ordered online.
*Applicable documents are included only with products whose part number includes (JCSS calibration book included), (general calibration book/traceability system diagram included), or (calibration book/traceability system diagram included).

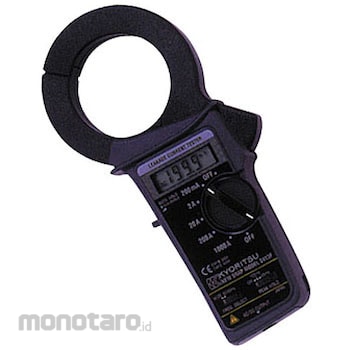

KYORITSU ELECTRICAL INSTRUMENTS Clamp meter for leakage current measurement
#Grup produk P113816310
Sebelum PPN:
Rp8.399.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Current (A) | 200mA/2/20/200/1000 |
|---|---|
| Accuracy | AC current (50/60Hz): ±1.5%rdg±2dgt (200mA/2/20A), ±2%rdg±2dgt (200A, 0 to 500A), ±5.5%rdg (501 to 1000A), AC current (WIDE): ±1%rdg±2dgt (50/60Hz) (200mA/2/20A), ±1.5%rdg±2dgt (50/60Hz) (200A, 0 to 500A), ±5%rdg (50/60Hz) (501 to 1000A) |
| Analog Output | AC/DC 200mV for the maximum value of each range (100mV for 1000A range) |
| Applicable Standard | IEC61010-1 (JIS C 1010-1) CAT.III300V Pollution degree 2, IEC61010-2-032 (JIS C 1010-2-32) |
| Continuous Operating Time (hour) | About 60 |
| Dimensions, Width W x Height H x Depth D (mm) | 130x250x50 |
| Frequency Range (Hz) | 40~1K |
| Included Accessories | Carrying case (9094), 006P x 1, instruction manual |
| Length (mm) | 50 |
| Mass (g) | 570 (including batteries) |
| Power Supply | 006P (square 9V) x 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | 0.1mA (minimum) |
| Suitable Battery | 006P(9V)x1 |
