Designed to have extremely little influence from external magnetic fields due to the adoption of a high-performance shield core. 3 range switching AC40mA/400mA/400A with peak hold function.
Ideal for managing electrical leakage in stores, buildings, etc.
*Shocks such as dropping or storage at high temperatures may cause malfunction and are not covered by the warranty.
[Products with proofreading documents cannot be canceled after ordering] *Products with proofreading documents and traceability system diagrams can only be ordered online.
*Applicable documents are included only with products whose part number includes (JCSS calibration book included), (general calibration book/traceability system diagram included), or (calibration book/traceability system diagram included).

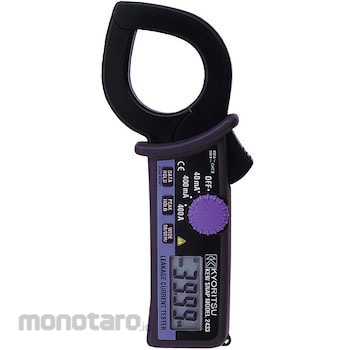

KYORITSU ELECTRICAL INSTRUMENTS Clamp meter for leakage current measurement
#Grup produk P113816277
Spesifikasi
| AC Current (A) | 40/400m/400 |
|---|---|
| Accuracy | AC current (50/60Hz): ±1%rdg±5dgt (40/400mA), ±1%rdg±5dgt (0 to 350A), ±2%rdg (350.1 to 399.9A), AC current (WIDE): ± 2.5%rdg±10dgt (20Hz~1kHz) (40/400mA), ±2.5%rdg±10dgt (40Hz to 1kHz) (0 to 350A), ±5%rdg (40Hz to 1kHz) (350.1 to 399.9A) |
| Applicable Standard | IEC61010-1 (JIS C 1010-1) CAT.III300V Pollution degree 2, IEC61010-2-032 (JIS C 1010-2-32) |
| Calibration Certificate | General calibration |
| Continuous Operating Time (hour) | Approximately 40 (auto power off approximately 10 minutes) |
| Dimensions, Width W x Height H x Depth D (mm) | 81x185x32 |
| Frequency Range (Hz) | 20~1k(40~1k:400A) |
| Included Accessories | Carrying case (9052), AAA batteries R03 x 2, instruction manual |
| Length (mm) | 32 |
| Mass (g) | 270 (including batteries) |
| Part Number | MODEL2433 (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | AAA battery R03 (1.5V) x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | 0.01mA (minimum) |
| Response Time (s) | About 2 |
| Suitable Battery | AAA battery R03 (1.5V) x 2 |
