Effective value type large-diameter leak clamp True effective value measurement that is effective for distorted waveforms Large-diameter transformer core enables simultaneous measurement of three phases Designed to have extremely little influence from external magnetic fields Frequency switching that can eliminate the influence of harmonics Equipped with a 2-way analog output terminal with functions (AC/DC output terminal) AC output: Outputs the AC input waveform as is, allowing waveform observation with an oscilloscope DC output: Converting AC input to DCV, allowing direct connection to a recorder Peak hold Equipped with functions (response time 10ms, 100ms) Backlight, data hold function equipped Minimum resolution 0.1mA
* Only orders can be placed online.

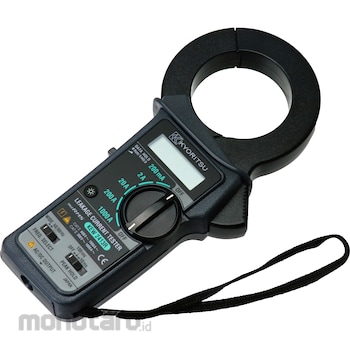

KYORITSU ELECTRICAL INSTRUMENTS Clamp meter (RMS) for measuring leakage current and load current
#Grup produk P113816231
Spesifikasi
| AC Current (A) | 200m/2/20/200/1000 |
|---|---|
| Applicable Standard | IEC 61010-1 (JIS C 1010-1) CAT.III 300V Pollution degree 2, IEC 61010-2-032 (JIS C 1010-2-32) |
| Calibration Certificate | General calibration |
| Continuous Operating Time (hour) | About 60 |
| Crest Factor | 3 or less |
| Dimensions, Width W x Height H x Depth D (mm) | 130x250x50 |
| Frequency Range (Hz) | 40~1k |
| Included Accessories | 9094 (carrying case), 006P (square 9V) x 1, instruction manual |
| Length (mm) | 50 |
| Mass (g) | Approximately 600 (including batteries) |
| Output | Waveform output: AC200mV for the maximum value of each range (100mV for the 1000A range), Recorder output: DC200mV for the maximum value of each range (100mV for the 1000A range) |
| Part Number | KEW2413R (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | 006P (square 9V) x 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | 0.1mA (minimum) |
| Suitable Battery | Square 006P(9V)x1 |
