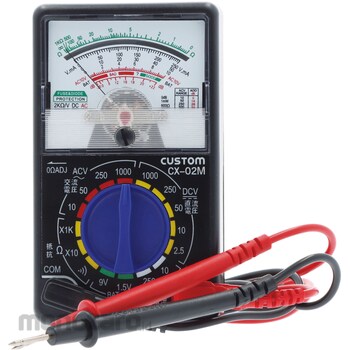

Compact, simple-to-use analog tester for beginners. Includes continuity buzzer. Scale plate with mirror to reduce reading errors in measured values.
Checking voltage, etc. at industrial sites Checking voltage, etc. at electrical work Checking technical training at school, etc.
* We do not deliver to private homes (detached houses / apartments).
Custom Analog tester
#Grup produk P113813951
Spesifikasi
| AC Voltage (V) | (Range) 10V, 50V, 250V, 1000V, (Accuracy) ±5% of full scale, (Input impedance) 2kΩ/V |
|---|---|
| Applicable Standard | IEC-61010 CAT.II 300V |
| Calibration | Possible |
| Conformed Standard | IEC61010 CAT.II 300V |
| DC Voltage (V) | (Range) 2.5, 10, 50, 250, 1000, (Accuracy) ±5% of full scale, (Input Impedance) 2kΩ/V |
| DC current (mA) | (Range) 10, 250, (Accuracy) ±5% of full scale |
| Dimensions, Width W x Height H x Depth D (mm) | Approximately 65x116x35 |
| Included Accessories | Instruction manual (with warranty), test lead (with pin cover) |
| Mass (g) | Approximately 135 |
| Measuring Item | AC voltage, DC voltage, DC current, resistance, continuity, battery check, decibels |
| Noise Level (dB) | -20~+50 |
| Operating Temperature/Humidity Range | +5 to +40 °C, 75%RH or less (no condensation) |
| Option | Test lead: ATL-7, Case: CC-02 |
| Power Supply | AA battery x 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | (Range) 10kΩ (R x 10), 1MΩ (R x 1k), (Accuracy) ±5% of memory length |
| Voltage (V) | Battery voltage BAT: 1.5 (250 mA), 9 (10 mA), (accuracy) GOOD, ?, BAD |
