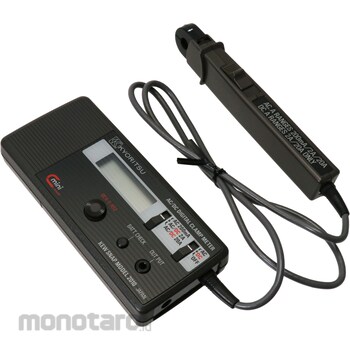

Ultra-compact high-sensitivity type that can measure from DC0.001A High-sensitivity type ultra-compact AC/DC clamp meter Minimum resolution is AC current 0.1mADC current 1mA Recorder output terminal included
*Please use KEW 2500 for current measurement of instrumentation signals. *This product is designed for low voltage circuits, so please do not use it to measure circuits over 60V. *Only orders can be placed via the website.
KYORITSU ELECTRICAL INSTRUMENTS AC/DC clamp meter
#Grup produk P113813395
Sebelum PPN:
Rp9.999.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Current (A) | 200m/2/20,±1%rdg±2dgt(200mA)(50/60Hz),±1.5%rdg±8dgt(200mA)(40Hz~2kHz),±1%rdg±2dgt(2A)(50/60Hz),±2.5%rdg±10dgt(2A/20A)(40Hz~2kHz) |
|---|---|
| Continuous Operating Time (hour) | Approximately 20 (when using DC), approximately 40 (when using AC) |
| DC Current (A) | 2/20±1%rdg±2dgt(2A)±1.5%rdg±4dgt(20A) |
| Dimensions, Width W x Height H x Depth D (mm) | (Main body) 64, (Sensor) 23 x (Main body) 142, (Sensor) 153 x (Main body) 26, (Sensor) 18 |
| Frequency Range (Hz) | DC,40~2k |
| Included Accessories | 9071 (carrying case), square 006P (9V) x 1, instruction manual |
| Length (mm) | (Main body) 26, (Sensor) 18 |
| Output | Recorder output: DC200mV for AC200mA/2/20A, DC200mV for DC2/20A |
| Power Supply | 006P (square 9V) x 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable Battery | Square 006P(9V)x1 |
